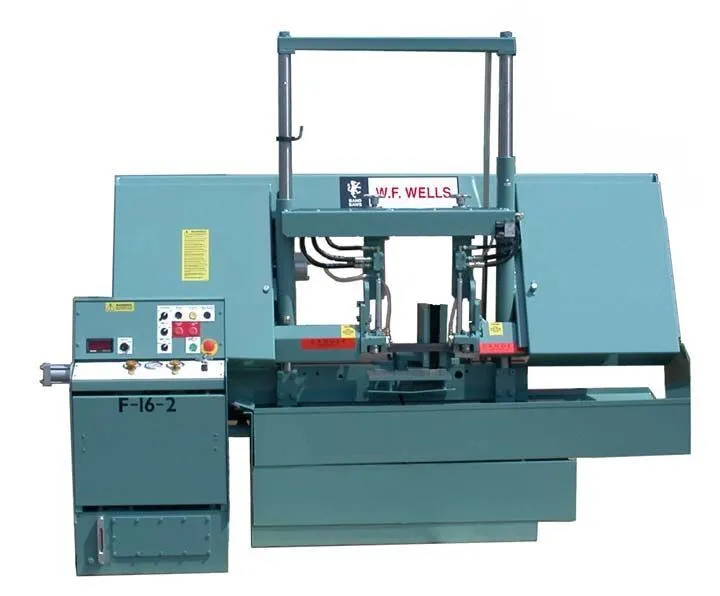

New W.F. WELLS F-16-2 | Horizontal Band Saws
ConditionNew
New
The F-16-2 series features automatic preset hydraulic blade tension, a hydraulic vise with variable clamping
pressure and increased sawing pressure for severe applications. These features ensure easier and more
productive operator control.
Specifications
Capacity................................Rectangular at 90 16" High x 20" Wide, Round at 90 16" Diameter
Rectangular at 45 16" High X 9" Wide, Round at 45 9" Diameter
Weight Capacity....................5,000 lbs.
Blade Speed .........................60-425 SFPM
Blade Size ............................1¼" X .042" X 15'
Blade Guide..........................Rollers and Carbide Side Blocks
Blade Tension.......................Hydraulic
Bandwheel Size ....................20" Voltage
Vise ......................................Full Stroke Hydraulic, 8½”
Blade Drive ...........................7½ HP, AC Vector Drive
Sawing Force........................0-750 lbs.
Coolant Capacity ..................15 Gallons
Hydraulic Capacity................20 Gallons
Hydraulic Drive .....................2 HP Motor
Work Height ..........................26"
Shipping Weight....................2,450 lbs.
Electrics ................................Wired to NFPA 79 Machine Tool Standards
Machine Dimensions.............97" Length x 49" Width x 83" Height
STANDARD EQUIPMENT
1 1/4" Bimetal Blade
Rollers and Carbide Side Blocks
Hydraulic Vise with Variable Pressure
Hydraulic Blade Tension
Semi-Automatic Operation
Built-In Coolant System
Console Controlled Blade Speed
Blade Powered Rotary Cleaning Brush
7½ HP AC Vector Drive
Fused Disconnect with Lockout
NFPA-79 Electrics
Automatic End-of-Cut Shut Down
Quick and Easy Blade Speed Change
Blade Speed and Work Selector Chart
Feed Pressure Monitor/Regulator
All Safety Guards with Door Interlocks
Operator Manual and Parts List
Factory Trained Start-Up Instructions
The F-16-2 series features automatic preset hydraulic blade tension, a hydraulic vise with variable clamping
pressure and increased sawing pressure for severe applications. These features ensure easier and more
productive operator control.
Imperial
| Rect-Cap (H) | 16" |
| Rect-Cap (W) | 20" |
| Rounds-Cap | 16" |
| Power | 7.5 hp |
| Type (Auto, Manual, Semi) | Semi |
| Blade Width | 1.25" |
| Blade Thickness | 0.042" |
| Blade Length | 180" |
Specifications
Capacity................................Rectangular at 90 16" High x 20" Wide, Round at 90 16" Diameter
Rectangular at 45 16" High X 9" Wide, Round at 45 9" Diameter
Weight Capacity....................5,000 lbs.
Blade Speed .........................60-425 SFPM
Blade Size ............................1¼" X .042" X 15'
Blade Guide..........................Rollers and Carbide Side Blocks
Blade Tension.......................Hydraulic
Bandwheel Size ....................20" Voltage
Vise ......................................Full Stroke Hydraulic, 8½”
Blade Drive ...........................7½ HP, AC Vector Drive
Sawing Force........................0-750 lbs.
Coolant Capacity ..................15 Gallons
Hydraulic Capacity................20 Gallons
Hydraulic Drive .....................2 HP Motor
Work Height ..........................26"
Shipping Weight....................2,450 lbs.
Electrics ................................Wired to NFPA 79 Machine Tool Standards
Machine Dimensions.............97" Length x 49" Width x 83" Height
STANDARD EQUIPMENT
1 1/4" Bimetal Blade
Rollers and Carbide Side Blocks
Hydraulic Vise with Variable Pressure
Hydraulic Blade Tension
Semi-Automatic Operation
Built-In Coolant System
Console Controlled Blade Speed
Blade Powered Rotary Cleaning Brush
7½ HP AC Vector Drive
Fused Disconnect with Lockout
NFPA-79 Electrics
Automatic End-of-Cut Shut Down
Quick and Easy Blade Speed Change
Blade Speed and Work Selector Chart
Feed Pressure Monitor/Regulator
All Safety Guards with Door Interlocks
Operator Manual and Parts List
Factory Trained Start-Up Instructions
