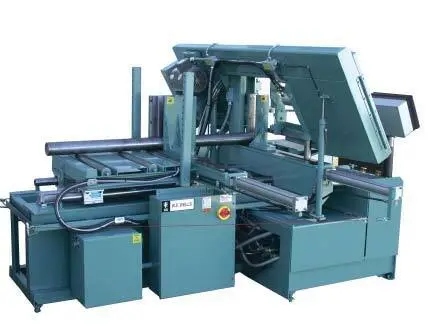

New W.F. WELLS F-1620-A CNC | Horizontal Band Saws

Machine Specifications
Capacity: Rectangular at 90º 16″ High x 20″ Wide, Round 16″ Diameter
Weight Capacity: 5,000 lbs
Blade Speed: 60-500 SFPM
Blade Size: 1¼” X .042″ X 15′
Blade Guide: Roller Guides with Carbide Inserts
Vise: Hydraulic, Full Stroke, 15″ High
Bandwheel Size: 20″
Blade Tension: Hydraulic
Blade Drive: 7½ HP, AC Vector Drive
Sawing Force: 0-750 lbs
Coolant Capacity: 15 Gallons
Hydraulic Capacity: 20 Gallons
Hydraulic Drive: 2 HP Motor
Work Height: 35″
Barfeed Projection: 0 – 25″ CNC Controlled
Shuttle Indexes: Unlimited
Projection Accuracy: +/-.002″
Remnant End: 4″
CNC Programmable Controller with Color Touch Screen
500+ Job Selection
Automatic Kerf Compensation
Blade Break/Stall Switch
Bed and Vise Wear Strips
Shipping Weight: 4,000 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Machine Dimensions: 104″ Length x 101″ Width x 88″ Height

Voltage
208-60-3
230-60-3
460-60-3
575-60-3

Optional Accessories
Hydraulic Holddown, Saw & Barfeed Vise
Hydraulic Auger Style Chip Conveyor
Discharge Worktable (20″ Wide x 48″ Long)
Work Light, Wired In
High Speed Drive & Guides (1” Blade) 400-3000 SFPM
Free Standing Roller Stock Conveyors, 6″ Centers:
21″ X 5′ X 5,000 lbs Cap. Distributed Weight
21″ X 10′ X 10,000 lbs Cap. Distributed Weight
