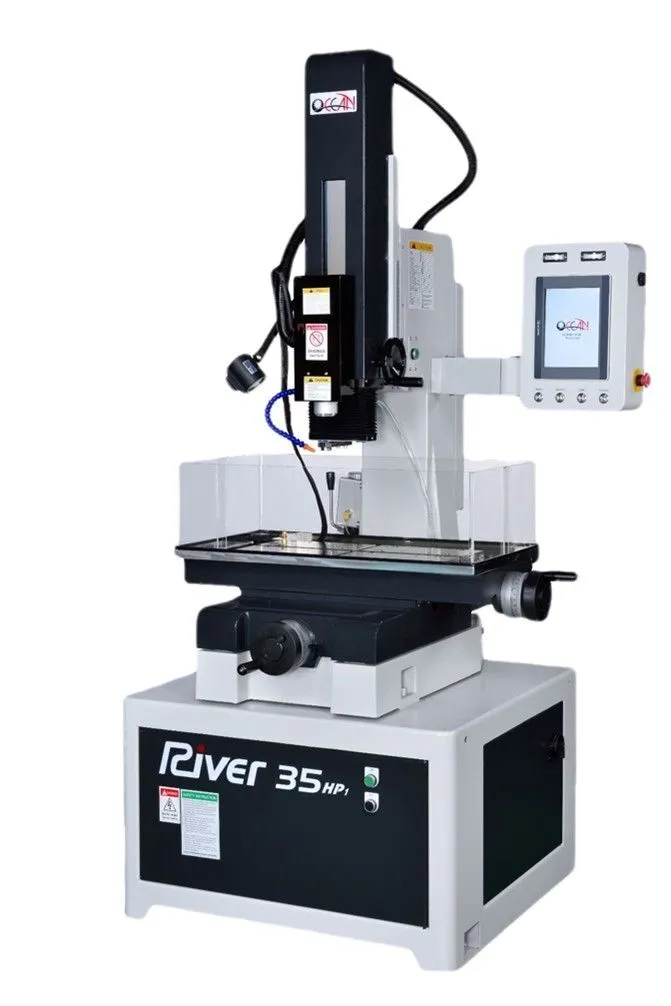

The Ocean Technologies River Series ZNC High Speed EDM Drilling machines offer heavy duty cast construction and high quality components for a true “Tool Room” grade machine. Boasting maximum workpiece weights of up to 550 pounds, this machine can handle jobs usually associated with much larger machines without losing accuracy or smoothness of operation.
Drilling is performed using rotating brass or copper tubular electrodes from 0.004” to 0.118” in diameter. A reliable high pressure pump employs adjustable through spindle flushing from 100~1900 P.S.I. allowing for the best possible performance with any size electrode.
A high speed Z Axis servo motor, 190 RPM precision spindle and electrode vibration dampening device ensure stable accurate drilling. Newly developed machining circuits and integrated “Smooth Start” designed especially for small hole drilling, reduce wear and electrode tip deformation or “bullet nosing”. Because the electrode end stays square and flat, blind hole drilling and breakout time are dramatically reduced.
CAPACITIES
Worktable Size .................................................................................................. 23.6” x 11.8”
X Axis ............................................................................................................... 13.8"
Y Axis ............................................................................................................... 9.8"
Z Axis (programable) ....................................................................................... 13.8"
W Axis ............................................................................................................... 7.9”
Electrode Diameter ........................................................................................... 0.004” – 0.118”
Electrode Material ............................................................................................. Brass / Copper
Maximum Workpiece Weight ............................................................................ 550 lbs.
Maximum Workpiece Height ............................................................................ 13.4”
Machine Dimensions (LxWxH) ......................................................................... 43” x 47” x 83”
Machine Weight ................................................................................................ 1,760 lbs.
POWER SUPPLY
Maximum Machining Current ............................................................................ 32 Amps (64 Amps Optional)
Power Capacity................................................................................................. 3.8 KVA
Power Input ....................................................................................................... 200/220 V ± 5%, 3 Phase, 60HZ
DIELECTRIC SYSTEM
Fluid Tank ......................................................................................................... 20 Liter (100L & 180L Optional)
Flush Pump ....................................................................................................... 100~1900 P.S.I.
Filter Pump ....................................................................................................... Standard
Filter .................................................................................................................. 10 micron paper element
Auxiliary Flush Nozzle ...................................................................................... Standard
In order to ensure a correct installation and optimum functioning of the machine, it is recommended the following points be taken into consideration:
ELECTRICAL:
The machine can tolerate incoming voltage variations of +5%. In case of voltage fluctuations that exceed this specification the customer may be required to purchase a constant voltage transformer.
Earth Grounding: Impedance< 10 ohm maximum.
COMPRESSED AIR:
Dry air, 100 psi
ENVIRONMENTAL CONDITIONS:
Temperature: 60-90º F
Humidity: 0-75%
Vibration: 0.5 G
STANDARD EQUIPMENT
5 memory sets of machining parameters
Machining parameters are adjustable on the fly
EDP Function for hole location spotting
Automatic or manual Z Axis zero point setting
Automatic or manual wear compensation
Inch or metric display
Touch Screen
