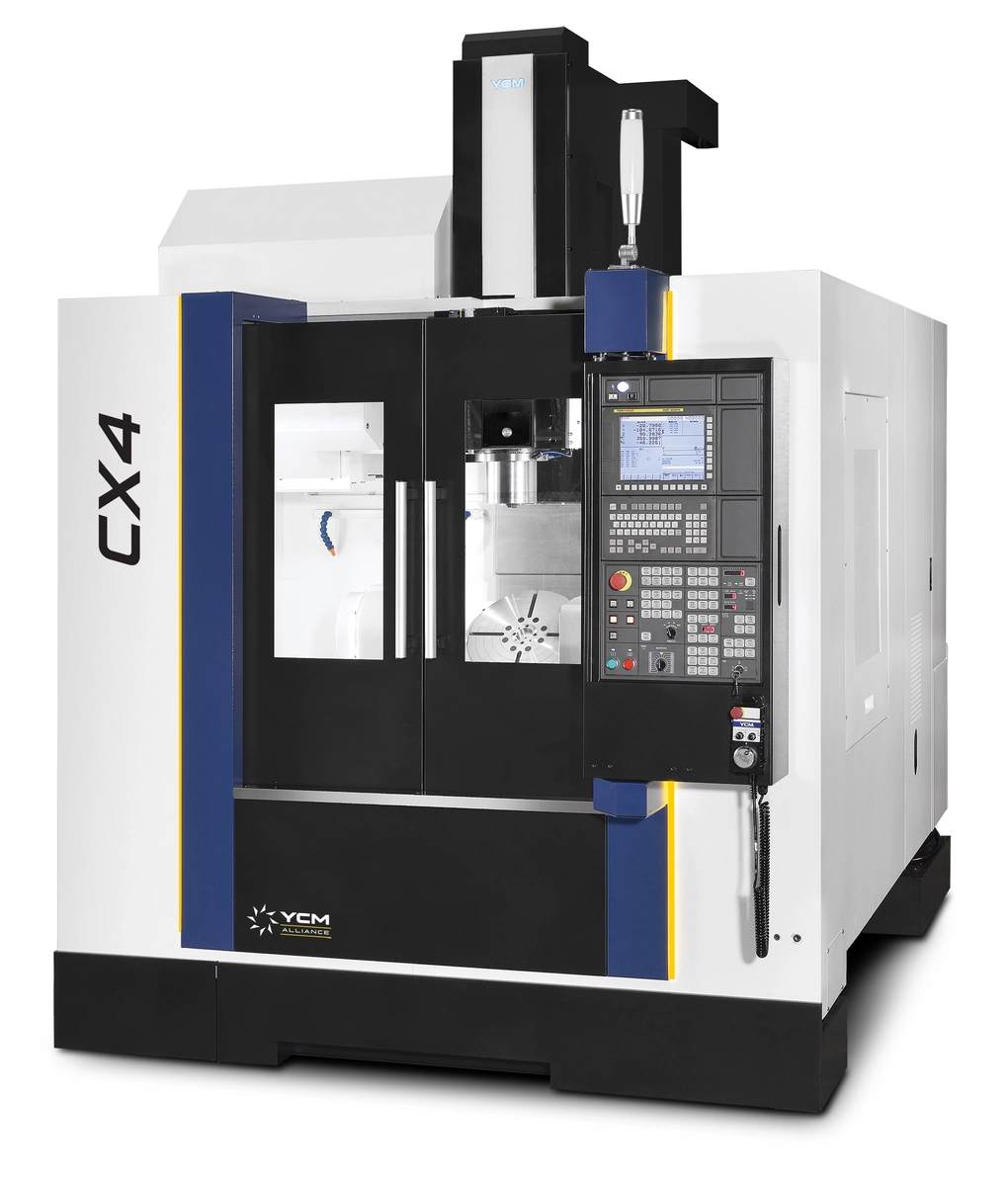

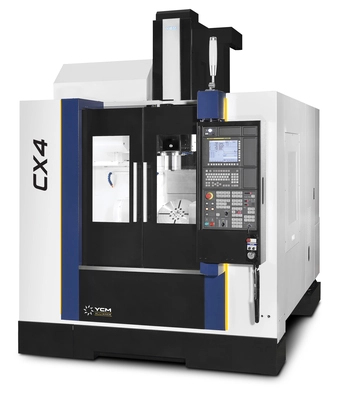

YCM CX4 (15K/60T)
ConditionNew
New
The CF/CX Series high-performance 5-axis vertical machining centers are built on a rigid C frame structure that delivers top-end quality and excellent value. Every machine tool is handcrafted for rigidity, thermal stability, and repeatability.
Travels: 25.59” x 20.47 x 18.9” X/Y/Z Travels
150 Degrees Travel in the A-Axis & Full 360 Degrees of Rotation in the C-Axis.
Includes: 31IB5+,15000RPM,30HP,60T, CAT40(BBT), CTS/ATS-PREP W/UNION, CONVEYOR/JORGENSEN, CHILLER, SCALES(XYZAC), KINEMATICS (OMI-2T+TS27R+OMP400 PROBE+AXISET), 1 seat CAMplete TruPath 5-axis imaging software
STANDARD FEATURES
Circular Coolant Nozzle
Shower Coolant System
Heavy Duty Coolant Pump
ATC Auto Door
40T ATC
12,000rpm Spindle
Cutting Air Blast
Spindle Air Blast
Spindle Air Seal (Labyrinth)
4 - Standard M-Codes
Spindle Cooling System
Linear Scales in X/Y/Z
Rotary Scales in A/C
Tilted Work Plane (TWP)
Smooth Tool Center Point (STCP)
Kinematics Package-Renishaw OMP 400 Spindle Probe, TS27R Tool Setter, Axis Set Software, and Calibration Ball
Chip Conveyor
CTS/ATS Prep w/Union
Oil Skimmer
Interior Work Light
3-Color Status light
Automatic Power Off
Interlocking Door Safety Switch
Central Auto-Oil Lubrication System
Guideway Covers on X/Y/Z
(2) Y-Axis & (1) Axis Chip Augers
Full Chip Enclosure
Leveling Blocks and Bolts
Heat Exchanger for Electrical Cabinet
Mechanical, Electrical & Operating Manuals (CD)
Tool Kit
