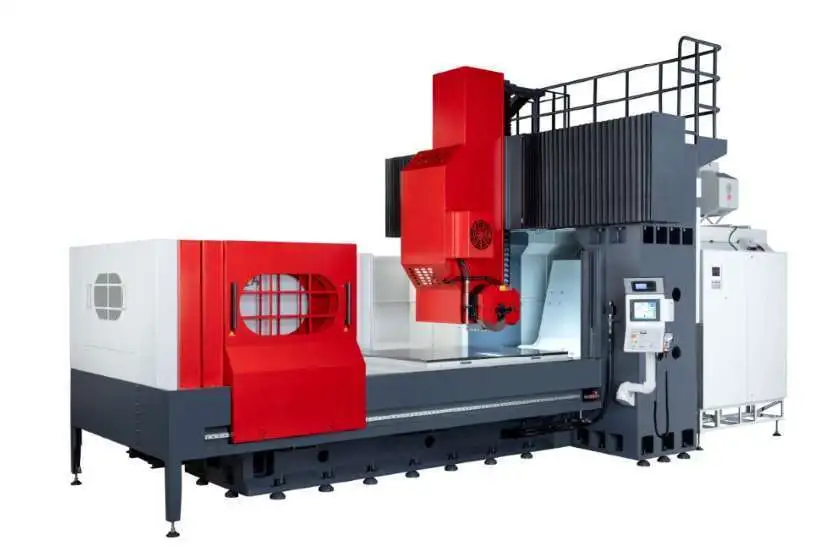

The large format series of Ziersch surface grinding machines are designed to process large workpieces up to 78.74” (2,000 mm) wide. A heavy cast iron base provides maximum support and rigidity. Longitudinal axis slideways are hand scraped and coated with Turcite® for excellent vibration dampening, and preloaded precision linear guideways (Bosch Rexroth) and ball screws are used in the vertical and cross-axis to ensure high rigidity and accuracy. This, combined with Heidenhain measuring for precise vertical positioning, delivers high-quality grinding results.
Grinding Range: 78.74" x 47.24
Cross Travel: 43.30"
Longitude Travel: 98.42"
Spindle Nose to Table: 41.33"
Distance Between Columns: 49.21"
Magnetic Chuck Size: 78.74" x 39.37"
Grinding Table Size: 80.70" x 39.37"
Table Load (Including Chuck): 8,800 lbs.
Infeed Longitudinal Axis: 196.8 - 1181.10 in/min
Infeed Cross Axis: .00039 - 196.8 in/min
Infeed Vertical Axis: 3.937 - 118.11 in/min
Grinding Wheel Dimensions: 19.68" x 3.93" x 7.99"
Grinding Spindle Drive: 29.5 HP
Control Range Grinding Spindle Motor: 1,000 - 3,000 RPM
Machine Weight: 44,000 lbs.
KEY FEATURES & BENEFITS
▪ User friendly Z-Control with high comfort
▪ Automatic vertical infeed with dressing amount compensation
▪ Fully automatic grinding cycle with dressing cycles
▪ Grinding cycles:
• Surface grinding
• Plunge grinding
• Roughing / Finishing / Sparking out
▪ Ease in operation via touchscreen
▪ Large and clear colour screen (10,4’’)
▪ Electronic hand wheel, usable in vertical- and cross axis,
adjustable increments of 0,001 to 0,01 mm
▪ Gantry design for the highest precision
▪ Stable cast iron execution of all machine components
▪ High machine weight for max. rigidity
▪ Preloaded precision linear guideways in the vertical- and cross axis (Bosch Rexroth) for highest
accuracy
▪ Scraped double V slideways in the X-axis provide excellent damping characteristics and high quality
micrograph.
▪ Hydraulic longitudinal motion in order to obtain excellent surfaces
▪ Electro-mechanic cross- and vertical movement
▪ Direct measuring system in vertical axis (Heidenhain) for exact positioning
▪ Encoder in cross axis
▪ Maintenance free band filtration unit with 2000 l tank and 10 bar pressure pump for effective cooling
and rinsing
▪ Magnetic separator for prefiltration
▪ Integrated rinsing channel
▪ Power supply = 400 volt, 3 phases, 50 Hertz
▪ Grinding spindle drive trough coupling, eliminating heat transfer
▪ Grinding spindle motor with constant cutting speed during the complete working range of the grinding
wheel (vconstant)
▪ Super precision spindle bearings guarantee high durability
▪ 2 Machine lamps in working area (LED)
▪ Table-mounted dressing unit for high precision and surface finish with a fixture for 3 dressing
diamonds
▪ Electro-permanent magnetic chuck (supplier SAV) with integrated pole changing unit and traction
regulation, pole pitch = 25mm
▪ Regulation in 16 steps
▪ No heating of the magnetic chuck guarantees highest precision
▪ Automatic central lubrication in the x-axis (guideway oil)
▪ Automatic central lubrication in the y + z-axis (grease)
▪ Partial encapsulation of the machine with sliding door and a service door,
left side open top, right side closed top, with 300 mm connection piece for coolant mist exhaust unit
▪ Effective splash guard and an excellent accessibility
▪ Additional service door at the back of the machine, incl. second handwheel
▪ Preparation of the machine for installation of a coolant mist exhaust unit;
Connection piece = 300 mm
STANDARD FEATURES
▪ Grinding wheel flange
▪ Grinding wheel
▪ Complete documentation
▪ CE – attestation of conformity
▪ Acceptance report according to DIN 8632
▪ Machine levelling blocks
▪ Wheel balancing arbor
▪ Roll dispenser (wheel balancing unit)
Color
▪ RAL 3002 (carmine red) sliding door and grinding wheel protection
▪ RAL 7035 (light grey) machine
▪ RAL 7024 (graphite grey) base
