New YOU JI YV320ER/EL (STOCK) | CNC Lathes

Description

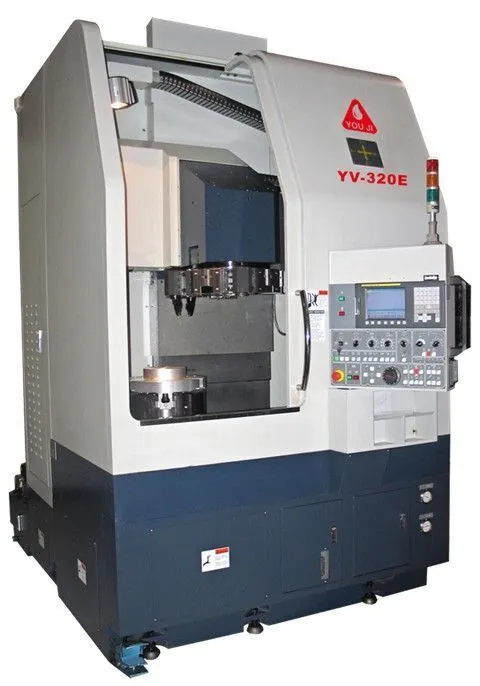

The YV320E (R/L) Vertical Turning Center is a compact, high precision, heavy duty machine. Weighing in at nearly 13,000 lbs., this versatile machine can handle a variety of demanding tasks. The rigid vertical column and base are meehanite castings, heavily ribbed for reduced thermal distortion and vibration dampening. The X and Z axis linear guideways (box ways option) are completely enclosed and a forced lubrication system assures high precision. The high speed linear way system enables rapid traverse rates of 944 inches per minute. The precision class 3 ballscrews are driven directly by the servo motors, eliminating belts or gears for high precision.

The spindle construction is a heavy duty design incorporating high precision double roller bearings and 45 degree angular contact thrust bearings. The spindle also is protected from coolant contamination. The NN type spindle bearings are used to endure high centrifugal loads and big spindle loads. The 30 HP high torque Fanuc P Series spindle motor provides the power for heavy duty machining and high speed for fine finishing. For applications requiring high torque at low RPM, the 2 speed ZF gearbox is available as an option.

The 8 position (10 opt.) horizontal hydraulic turret provides for .5 second index time and shortest route tool selection. Chip control is excellent as chips and coolant wash directly into the standard chip conveyor. A standard chip wash system forces any chips from the machining area into the conveyor. This versatile VTL is designed for stand alone applications or is easily integrated into a production line. Right and left mirror image versions are available for side by side operation. A full C axis with choice of 10 station VDI-40 or 12 station BMT-65 live tool turrets are optionally available for milling operations. The VDI-40 turret is equipped with a 7.5HP spindle motor while the BMT-65 turret is equipped with a 10HP (15HP optional) spindle motor.

Furthermore, a moving column Y axis structure is available for 3 axis milling ability. The Y axis features +/- 80mm of travel from spindle center (+/- 3.15”). The Y axis traverses on rigid box ways and provides true linear Y movement for accuracy and true linear positioning. For special applications, a hydraulic tailstock can be added.

Fanuc CNC controls are standard for ease of use and reliability. A 2 year complete CNC system warranty is standard.
