New Spinner VC850-5A (STOCK) | Vertical Machining Centers
ConditionNew
1 available
New

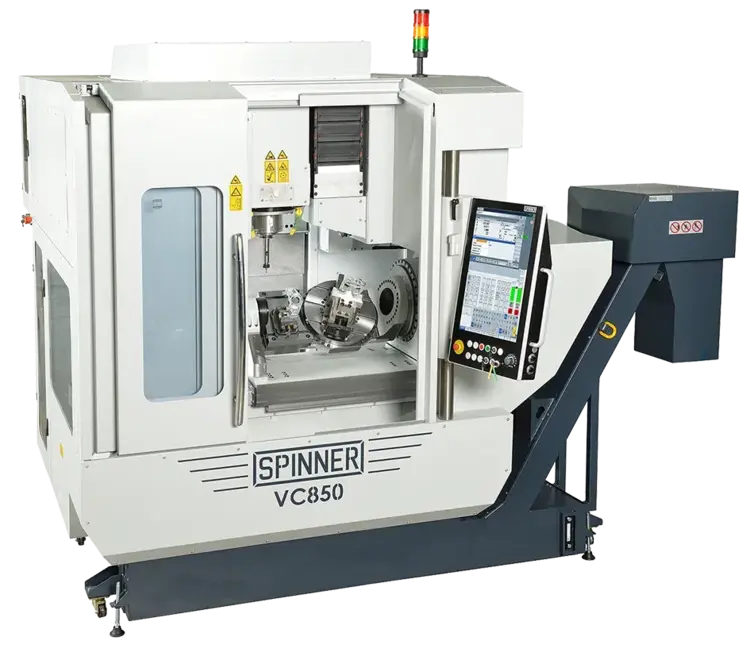

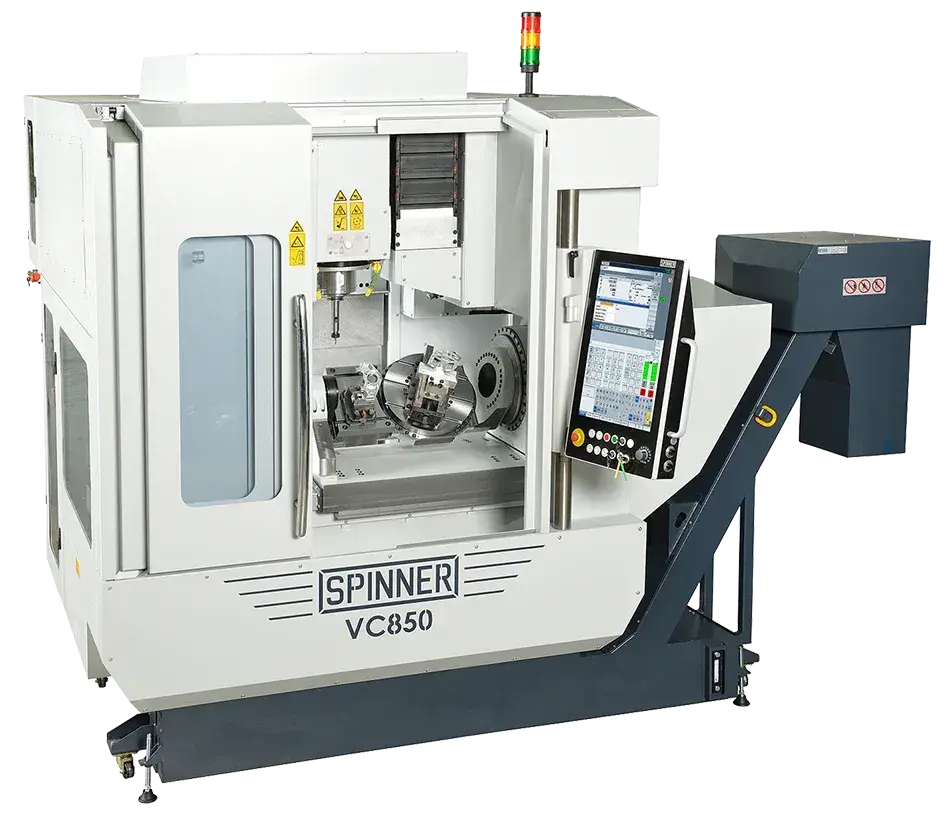

The VC850-5A is a 5-axis Vertical Machining Center for high performance 3+2 and 5-axis simultaneous machining with spindle speeds up to 18,000 rpm. This machine has an integrated rotary-/swivel table that is perfect for workpieces up to about 350mm on rotary table and accommodates parts of many different sizes and materials. It is available with the most modern controls such as Heidenhain and Siemens.
Designed as a compact machining center, the VC850-5A has a patented one-piece way covers in the X & Y axis, eliminating the accordion style cover, and reducing the required floor space up to 30% over similar machines with the same working area. The overall design is perfect where there is very limited floor space capacity.
This way cover design significantly reduces maintenance costs and increases machine uptime, and shrinks the distance from the machine enclosure to the table down to only 6.2 in (160 mm) to facilitate easy part loading.
A heavy casting that is optimized by FEM method ensures high rigidity and high cutting performance. All ballscrews are oversized and supported on both ends. Large tool magazine options include 32 tools or 48 tools. The machine can handle heavy workpieces and can be configured with automation for production applications.
Working Area
X: 33.4 in (850 mm)
Y: 20 in (510 mm)
Z: 20 in (510 mm)
Maximum Distance Spindle Nose to Table: 24.8 in (630 mm)
Feedrate
Rapid Traverse X: 1,574 ipm (40 m/min)
Rapid Traverse Y: 1,574 ipm (40 m/min)
Rapid Traverse Z: 1,574 ipm (40 m/min)
Rotary/Tilting Table
Table Dimensions: Rotary table diameter is 13.7 in (350 mm)
Side table is approximately 6.6 in x 11 in (170 x 280 mm)
Maximum Table Load 440 lbs (200 kg)
A axis: -110° / +45°
C axis: 360°
T slots: 3 x 12H7
Spindle
Speed (max): 12,000 rpm
Performance: 30.3 hp (22.6 kW)
Torque: 79.6 ft-lbs (108 Nm)
Tool Holder: SK40
Tool Magazine
Station Quantity: 48
Tool Length (max): 11.8 in (300 mm)
Tool Diameter (max): 2.95 in (75 mm)
Tool Diameter (max) - Adj Pocket Empty: 2.95 in (75 mm)
Tool Weight (max): 15.4 (7 kg)
Size & Electrical
Machine Dimensions: 98.1 in (2493 mm) x 70.8 in (1800 mm) x 95.2 in (2420 mm)
Machine Weight (approx): 11,023 lbs (5,000 kg)
Operating Voltage: 3 x 400V (+/-10%)
Main Frequency: 60 Hz (+/- 2%)
Networking: TN network (5-wire)
Standard Equipment
● Chip Conveyor, Scraping Type, Right Side
● Compressed Air Nozzle on Spindle
● Coolant Gun
● Kinematics Calibrating Sphere
● Blum Workpiece Measuring Probe, IC56 TC52 SK40
● Toolsetter ZX-Speed IR
Feature Highlights
● Compact design
● High precision
● 4+1 simultaneous machining
● Solid FEM designed with highly ribbed casting
● Heavy ribbed traveling column design

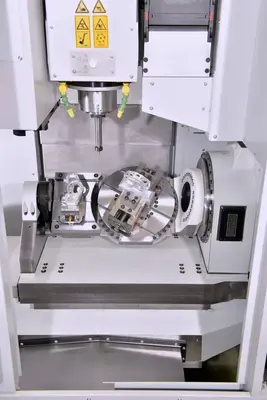

● High-performance 18,000 rpm built-in direct drive hybrid spindle without a belt.
● All linear axes with rigid high-precision guides
● Large panoramic windows
● Wide enclosure opening for access to the work area
● Top of the machine is fully enclosed
● High spindle speeds
● Large tool magazine capacity
● Ergonomic operating panel adjustable in height and angle
● Workspace lights
● Outstanding chip management
● Technical design according to CE standards in accordance with the European Union with corresponding CE certificate
