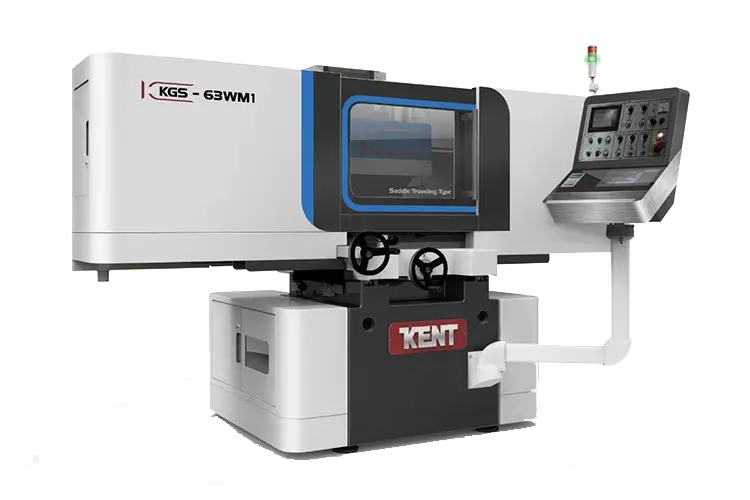

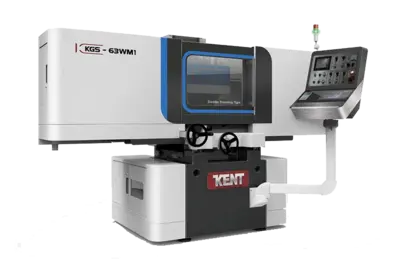

KENT KGS-63WM1 (STOCK)
ConditionNew
1 available
New
Features & Capability
Downfeed Programmable
Longitudinal on V-flat scraped guideways
Saddle traveling crossfeed
Motorized rapid elevation
Spindle motor frequency inverter *Optional
Hydraulic oil chiller *Optional
Full enclosure *Optional
Overhead hydraulic wheel dresser
Variable spindle speed *Optional
Surface grinding
Plunge grinding
Capacity
Overall table working area - inch 12 x 24
Longitudinal table travel - inch 28
Crossfeed table travel - inch 13.5
Distance spindle center to table - 24
Grinding Wheel
Wheel dimension (Dia. x W x Bore) - inch 14 x 1.5 or 2 x 5
Spindle speed - RPM 1740
Vertical Movement
Vertical on MPG / Handwheel 1 gra - inch 0.00005
Vertical on MPG / Handwheel 1 rev - inch 0.005
Auto downfeed increment - inch 0.00005-0.01
Motor
Spindle motor - HP 7.5
Dimension & Weight
Machine height - inch 72
Floor space - inch 102 x 99
Net weight - LB 3850
Gross weight - LB 4290
Standard Equipment
*Downfeed Programmable
*220V
Coolant System with Magnetic Seperator 150L+M2
Front Table Splash Guard
Three Axis Automatic
Hydraulic Chiller Fan
Electro Magnetic Chuck
Grinding Wheel Flange
Flange Removal Tool
Balance Table
Balance Rod
Grinding Wheel 355x38x127mm
Tool Set
Machine-to-adjust-Sizing-Block
Complete Documentation
