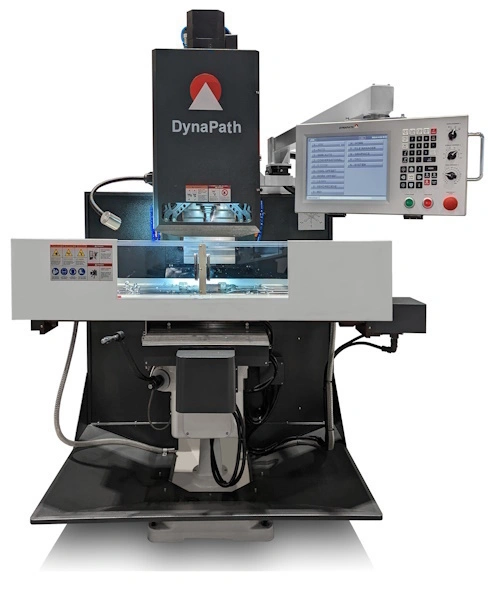

Dynapath VK-4T Vertical Knee Mill
ConditionNew
1 available
New
Efficient and compact machines suitable for Job Shops, Tool Rooms, Design Prototyping, and small lot Production Operations.

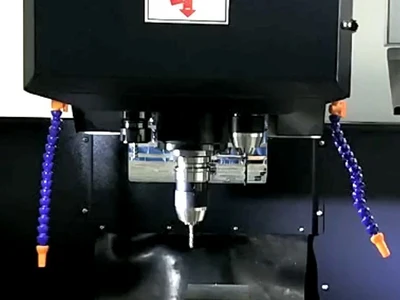

DynaPath VKT mills features an unique four-station tool changer that enables batch production using standard 40-taper tooling. In addition, the fully direct-driven X, Y, Z, and spindle axes offer enhanced rigidity and performance. For the operator, the versatile WinDelta control allows manual DRO, semi-automatic, and also fully automatic operation of the machine by running standard G-Code. Furthermore, Conversational Programming and DXF CAD capabilities enable the operator to program right at the machine.
Knee Mill + ATC
TRAVEL XYZ 900 x 340 x 270 mm (35.4" x 13.3" x 10.6")"
KNEE TRAVEL (Z) 350 mm (13.7")
SPINDLE NOSE TO TABLE 100-400 mm (3.9-15.7")
TOOL TO COLUMN 360 mm (14.2")
AXIS TYPE X/Y/Z Dove / Dove / Linear
MOTORS X/Y/Z 0.85 / 0.85 / 0.85 kW Direct Drive
SPINDLE TAPER BT40 / CAT40
SPINDLE DIAMETER 120 mm (4.7")
SPINDLE RPM 50-6000 RPM
SPINDLE MOTOR 5 HP (3.75kW) Direct Drive
SPINDLE RATED TORQUE 24 N-m (17.70 ft-lb")
TOOL CHANGER 4 Stations
MAX RAPID SPEED X/Y/Z 6000 mm/min (236 IPM)
POSITIONING ACCURACY 20 um (0.000787")
REPEAT ACCURACY 10 um (0.000394")
TABLE SIZE 1470 x 320 mm (57.9" x 12.6")
TABLE SLOTS x OFFSET x WIDTH 3 x 75 mm x 16 mm (3" x 2"61/64 x 5/8)"
MAX TABLE LOAD 220 kgs (484 lbs)
MACHINE WEIGHT 1800 kg (3960 lbs)
SHIPPING L x W x H 2000 x 1800 x 2300 mm (79" x 71" x 91")
MACHINE L x W x H 2600 x 1800 x 2650 mm (103" x 71" x 105")
COOLANT CAPACITY 40 L (10 gal)
AIR REQUIREMENTS 6 kg/cm2 (90 psi)
POWER REQUIREMENTS 8 kVA, 3 Phase, 220V
Standard Features:
CNC Rigid Tapping
X, Y, Z Precision Ball Screws
Manual Table Height Crank
Auto Lubrication System
Air/Flood Coolant System
Table Top Enclosure
Splash Guard
Coolant Drip Pan
Way Covers
LED Work Light
Power Tool Clamp Draw Bar
Tools and Tool Box
Options:
8000 RPM BT/CAT 40 Spindle with Dual Winding
4th Axis Rotary Table
