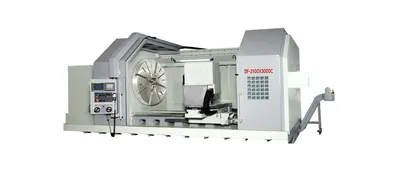

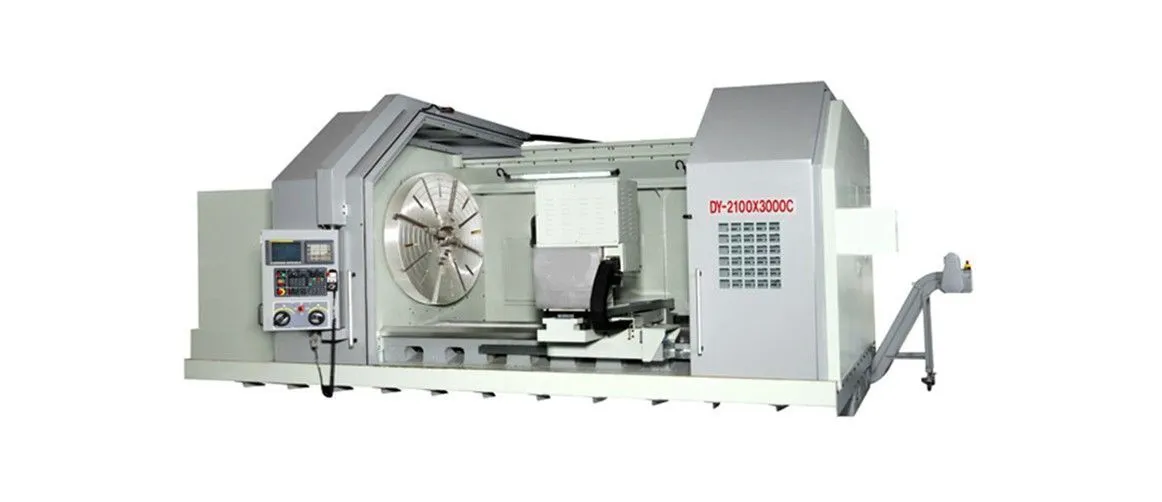

New DYNAPATH DY-2000A | Flat Bed Lathe
ConditionNew
New
DynaPath DY-2000 Flat Bed Lathe (60 HP Spindle) - 78.74” Swing / 236.22” Between Centers and 45.28” Bed Width. Equipped With DynaPath WinDelta Control, 12.1 Color Touch Screen LCD, AC Servo Axis Motors with Digital Interface, 60 HP Spindle Motor and Standard Machine Tool Accessories with Manuals.
CAPACITY
Distance Between Centers: 236.22”
Swing Over Bed: 78.74”
Swing Over Cross Slide: 57.48”
Bed Width: 45.28”
TRAVEL
X Axis Travel: 39.37”
Z Axis Travel: 236.22”
SPINDLE HEAD
Spindle Motor: 60 HP
Spindle RPM: 20-350
Spindle Nose: A2-20
Spindle Bore: 12.00”
TAILSTOCK
Tailstock Quill Diameter: 9.84”
Tailstock Quill Stroke: 17.72”
Tailstock Quill Taper: MT6
AXIS MOTORS
AC Brushless Servo Motors w/ Integral Encoder (X/Z max Torque): 3.8KW/8.2KW
RAPID TRAVERSE
“X” Axis: 197 IPM
“Z” Axis: 197 IPM
MACHINE DIMENSIONS: 134” x 450” x 119”
Depth: 134”
Length: 450”
Net Weight Lbs. (Shipping): 50500 (approx.)
Standard Machine Options:
Halogen Work Lamp
Safety Splash Guard (2 Sliding Doors)
Automatic Lubrication System
Heat Exchanger
Heavy Duty Tailstock
MPG Handwheel
