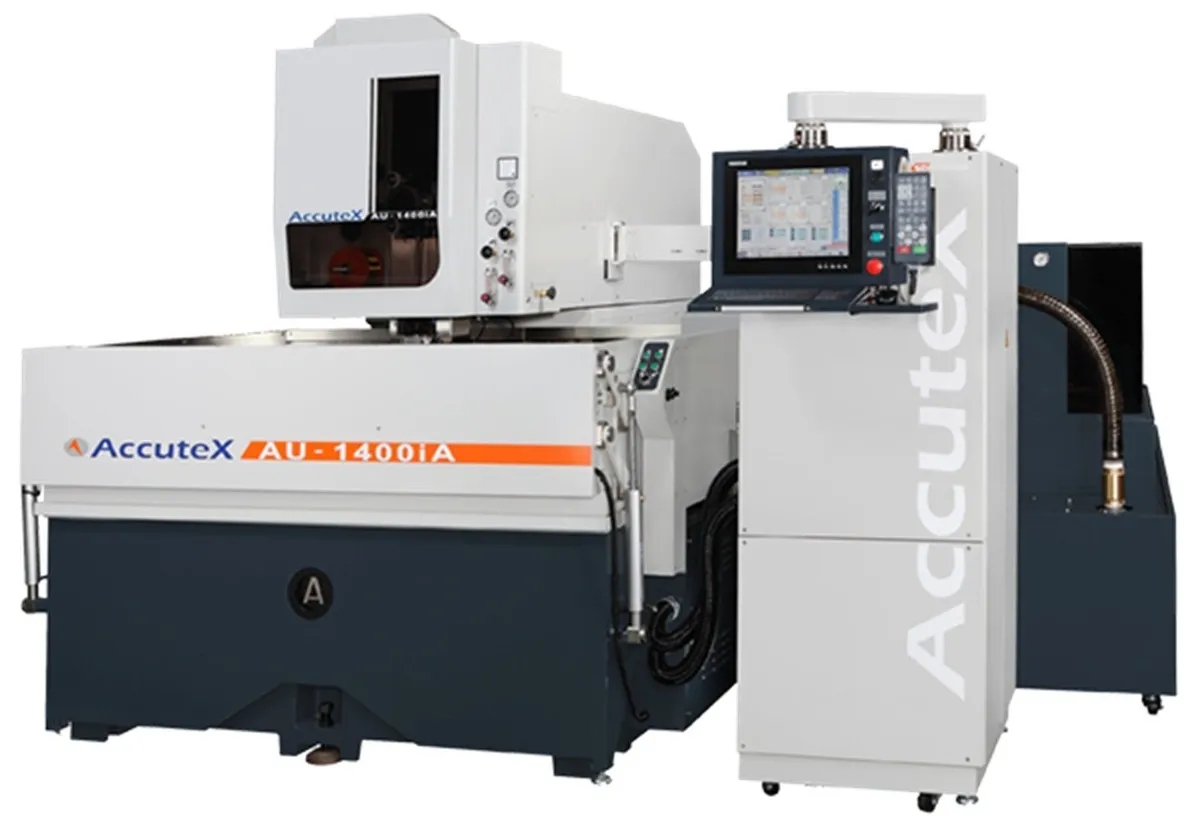

New ACCUTEX EDM AU-1400iA | Wire EDM
ConditionNew
New
The heavy duty machine body was designed by Finite Element Analysis (FEA) to assure optimized mechanical structure. Features include: Meehanite cast honeycomb-type base, highly-ribbed column mounted with oversized UVZ axis, and reinforced lower-arm to increase stiffness. All castings are stabilized and subjected to rigid testing to insure maximum strength, permanent high precision, and long durability.
High precision servo and transmission system uses 1.260 inch dia. C1 class ball screws with sub-zero and super-finish ground process for maximum smoothness and minimum pitch error. The axis are driven by means of closed loop, direct coupled AC servomotors with 8 millionths resolution and controlled by linear glass scale feedback system. The Hiwin linear guideways’ patented structure reduces up to 90% of friction and vibration producing unparalleled accuracy of motion.
The U-V axis mechanism has been placed in the cabinet above the working area. This design assures reliable durable operation in any shop environment. The rigid structure and 20mm C1 Class U-V ball screws provide high precision at the maximum flushing pressures necessary for high-speed cutting.
The precision work piece-mounting table is made of hardened stainless steel, has easy accessibility, and is designed as a standard clamping system. This permits the setting of a wide range of work pieces quickly and accurately. The worktable can also accommodate any commercial clamping system.
The machine is equipped with an annealing, fully automatic wire threading system (AWT) with a scrap wire disposal unit. AccuteX’s unique intelligent servo-control wire-threading technology (patent pending), together with multi-detectors, makes it the world’s fastest and most reliable (threading at wire break point) automatic wire threading system on the market.
The Windows CE based CNC system’s powerful 64 bit CPU is a high speed, stable, industrial-grade computer, featuring a powerful user friendly software interface and 15” touch screen. This controls’ conversational cutting condition selection, on board operation manuals and help menus, along with a long list of productivity functions and features, makes new users effective and experienced operators capable of performing any application easily and accurately.
CAPACITIES
X Axis: 55.1"
Y Axis: 31.5"
Z Axis: 7.9"
U Axis: 5.9”
V Axis: 5.9"
Rapid Traverse (Standard AWT): 40.0”/min.
Taper Angle (with wide angle guides and nozzles): ± 45°
Maximum Workpiece Dimensions (X,Y,Z): 68.5" x 42.5" x 7.7"
Maximum Workpiece Weight: 8,800 lbs.
Positioning Accuracy (X, Y): ±0.00016"
Repeatability (X, Y): ±0.00010"
Axis Drive Motors: AC Servo Motors Direct Coupled to Ball Screws
AUTOMATIC WIRE THREADING SYSTEM
Wire Diameter: 0.006"- 0.013"
Wire Guides: Round Diamond Guides
Wire Spool Feed Rate: 60-787 IPM
Wire Tension: 300-2,200g
Start Hole Size: 0.020" Dia.
Maximum Wire Spool Weight: 35 lbs. (100 opt.)
DIELECTRIC FLUID SYSTEM
Fluid Tank Capacity: 640 gl.
Chiller Unit: Standard (2 Ton Capacity)
Dielectric Fluid: Deionized Water
Resin Tank ( 2 each): 1035 1.0 cubic foot (fiberglass)
Filters (4 each): Cartridge (12” x 20” Quick Disconnect)
Filtering Precision: 3 to 20 μm
Water Conductivity Control: Automatic/ Adjustable (5~15 uS)
Water Temperature Control: Automatic ( +/- 1’C)
POWER SUPPLY
AC MOSFET Discharge Power Circuit
Application Specific Integrated Circuit (ASIC)
Anti-Electrolysis Power Supply (AC)
Intelligent OV Circuit
Modular PC Board Design
SD Master Board-Stable Discharge performance enhance the accuracy and machining repeatability
Power Source Requirements 220V +/- 5%, 3 Phase, 60HZ
Total Power Required 15 KVA
Floor Space 167” x 147” x 93”
Machine Weight 18,920 Pounds
Compressed Air Dry Air, 100 PSI
Environmental Conditions Temperature: 60-90° F
Humidity: 0-75%
Vibration: 0.5g
Machine Features:
Direct coupled AC servomotors with 0.2um resolution
AWT Monitor Screen
High Speed Digital/AC Power Supply
Conversational Cutting Condition Selection with API (automatic program imbedding)
64 Bit Windows CE Based CNC Control
Enhanced Anti-Crash Z Axis Protection
Fagor Linear Glass Scales
Chiller Unit (standard)
Fully Closed Loop 0.000008” Resolution Inch/Metric Switchable by program
45° Taper Cutting Capability (wide angle guides and flush cups required)
Parametric Macro Sub Programming
5 Controllable Axes (X, Y, U, V, Z)
Automatic Corner Pro Function
Work Coordinate System G54-G959 (60 work points)
Automatic Wire Feed System (Re-Thread at Break-Point)
Hand-Held Remote Pendant
Ergonomic CNC Operator Panel (Swivel Mounted and Adjustable)
15” Color Touch Screen
Edge Finding/Centering Manually, By G-Codes and by Guidance Menus
Extended Life Filtration Unit
On Board Operation and Help Menus
Ethernet (standard)
SD Master – Stable Discharge Circuit with EPGA Technology
RS 232C Input
Automatic Drop Door USB Port
Safety Door Interlock
Standard Equipment:
Machine, Generator, Numerical Control, and Filter System as well as the following items:
Automatic Wire Threading
Fagor Linear Glass Scales 0.000004” Resolution
Dielectric Chiller Unit
11lb. Spool Brass Wire (0.010 dia.) (1 each)
Wire Guides ( 0.010 dia.) (1 set)
Automatic Vertical Wire Alignment Device
Diamond Guide Removal wrench
Filter Cartridges 12 x 20 5um, Quick Disconnect (4 pieces)
Fiberglass DI Resin Bottle 2 pcs. ( 1035 1.0cu/ft capacity filled)
DI-Install Kit including Filter Housing, 5um Pre Filter, Di Resin Trap
Flushing Nozzles (Upper / Lower 2 sets) 4mm (2) and 8mm (2)
Tool Kit
Operation and Maintenance Manuals (1 set)
Complete software, calibration and parameter back-up (USB/ CF Card)
