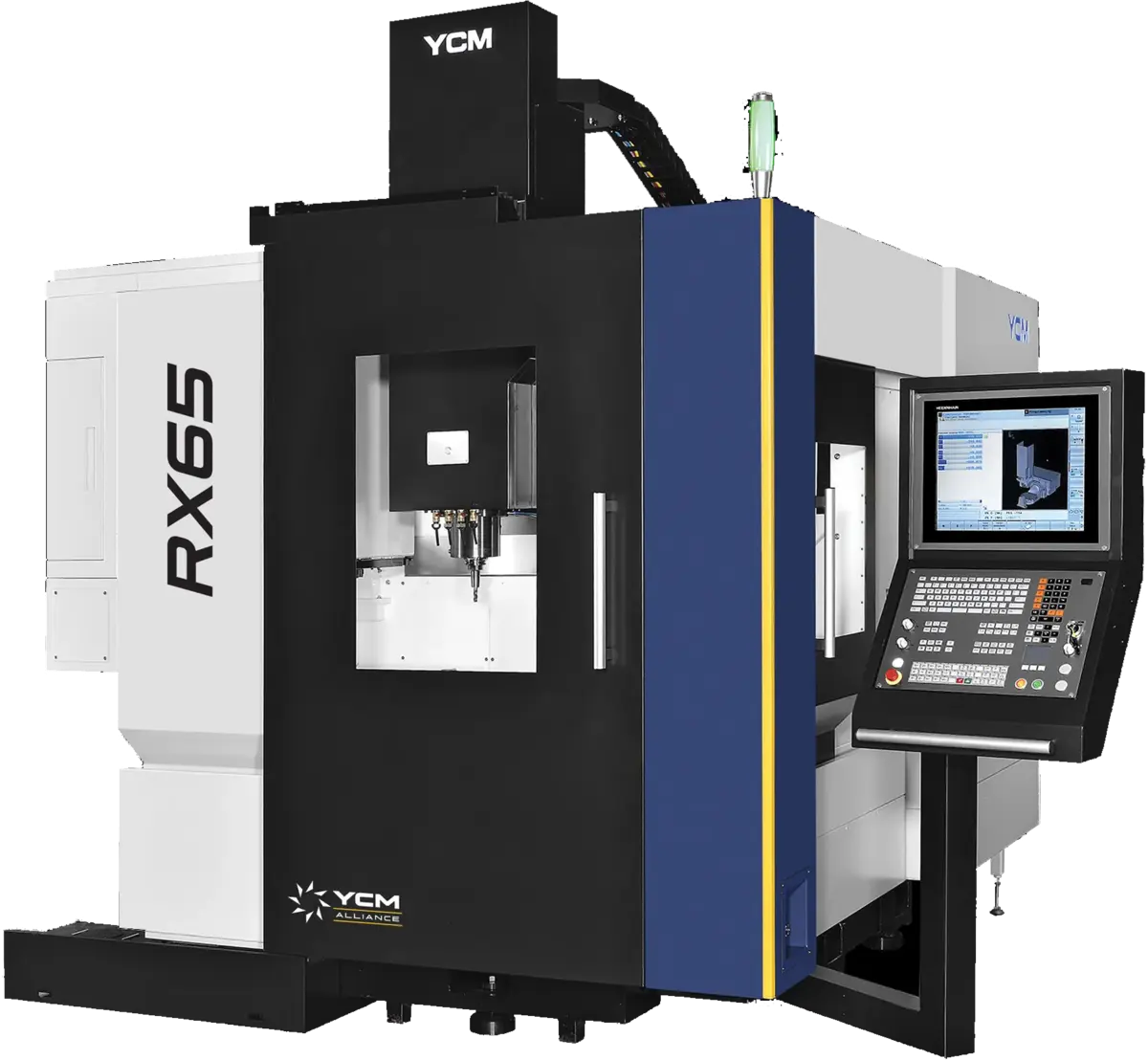

YCM RX65 12K/40T (STOCK)
ConditionNew
1 available
New
The RF/RX Series high-performance 5-axis vertical machining centers are built on a rigid RAM type structure that delivers top-end quality and excellent value. Every machine tool is handcrafted for rigidity, thermal stability, and repeatability.
Travels: 24.4” x 20.47 x 18.1” X/Y/Z Travels
160 Degrees Travel in the A-Axis & Full 360 Degrees of Rotation in the C-Axis.
INCLUDES: 31IMB-5 Plus, 12000RPM, 30HP, 40T, DUAL CONTACT CT40, CTS-PREP, CHILLER, X/Y/Z/A/C SCALES, Jorgensen CONVEYOR (Jorgensen tank), BLUM TC52 SPINDLE PROBE, BLUM LC50 LASER TOOL SETTER, Kinematics Perfect™), 1 seat of CAMplete TruPath 5-axis imaging software
Standard Features
Circular Coolant Nozzle
Shower Coolant System
Heavy Duty Coolant Pump
ATC Auto Door
40T ATC
12,000rpm Spindle
Cutting Air Blast
Spindle Air Blast
Spindle Air Seal (Labyrinth)
4 - Standard M-Codes
4 - Air, or Hydraulic Lines Through Table
Spindle Cooling System
Linear Scales in X/Y/Z
Rotary Scales in A/C
Tilted Work Plane (TWP)
Smooth Tool Center Point (STCP)
Kinematics Package-BLUM LC50 Laser Tool Setter, TC52 Spindle Probe, KinematicsPerfect™, and Calibration Ball
Jorgensen Chip Conveyor with EcoFilter
CTS/ATS Prep w/Union
Oil Skimmer
Interior Work Light
3-Color Status light
Automatic Power Off
Interlocking Door Safety Switch
Central Auto-Oil Lubrication System
Guideway Covers on X/Y/Z
(2) Y-Axis & (1) Axis Chip Augers
Full Chip Enclosure
Leveling Blocks and Bolts
Heat Exchanger for Electrical Cabinet
Mechanical, Electrical & Operating Manuals (CD)
Tool Kit
