For 4 decades, Precihole Machine Tools has been a world-class leading manufacturer of deep hole drilling and hole finishing solutions. The company not only designs and manufactures it’s lineup of common models, but also routinely creates and customizes engineering solutions to build models that meet specific specification for many of their worldwide customers. Precihole has a significant presence in industries such as Firearms & Defense, Oil & Gas and other Energies, Aerospace, Automotive, Die & Mold. Recently the company entered the medical industry with a new Micro Medical Gun Drilling Machine.
Deep hole drilling and finishing solutions have over 150 different applications that spread across 20+ industries. Precihole offers solutions for these various applications by manufacturing machinery solutions such as Gun Drilling, BTA (STS) / Ejector Drilling, Pull Boring, Trepanning, Counterboring, Honing, Lapping, Pull Reaming, Skiving and Roller Burnishing, Bottom Forming and Bottle Boring and more.

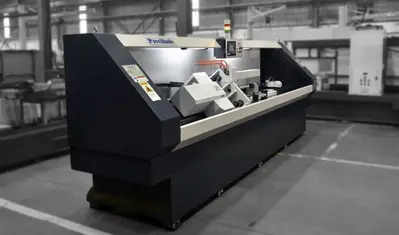

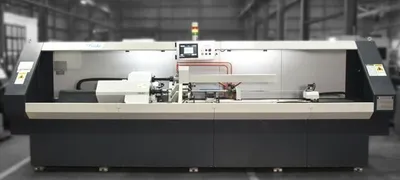

Precihole Button Rifling Machines incorporate the latest features to form precision grooves in small caliber weapon systems. The rifling button is pulled and rotated precisely through the barrel. The machine uses anti-backlash helical guides and rotary encoder to interpolate linear and rotary motion. This produces rifling twists exactly as needed by the rifling tool. Precihole’s button rifling operations are extremely fast at pull feeds of 40-50 IPM.
Machine Features:
Robot readiness for integration in an automated cell
Automation for insertion of rifling button and retrieval back to original position
Auto barrel clamping and unclamping
Auto lubrication of tool and barrel for smooth operations
Customized screens with graphing for operator-friendly usage
Rifling Diameter Size Range: 0.2″ – 0.5″
Number of Spindles: 1
Max. Rifling Depth: 24″/30″/40″
Barrel OD Range: 0.75″ – 2″
Max. Component Weight: 65 lbs.
Max. Rifling Feed (IPM): 0 – 80
Rifling Pull Force (Tons): 12
Precihole to use 10 barrels of One Size for trials at machine pre-acceptance.
All tooling accessories will be quoted separately as per customer requirements
Rifling Oil & Hydraulic Oil to be supplied by customer during trials. Specs for the same will be giving by Precihole once the order is confirmed.
2 copies of machine manuals, containing the following items will be dispatched with the machine:
Installation guidelines
Operating and maintenance instructions
Electrical Ladder Diagram
List of spares and consumables
