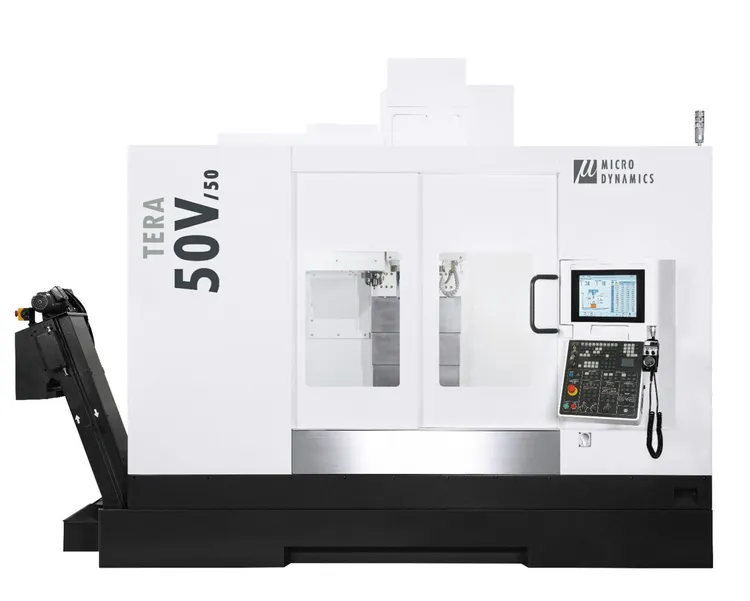

The Micro Dynamics Tera 50V/50 Vertical Machining Center was designed for the machining of all workpieces small to medium in size. The rigidity and the power of the machine, coupled with its DYPEC® Thermal Compensation, makes the machine one of the most accurate and versatile machining center available for all type of manufacturing facilities from aerospace, to medical, to general job shops. It’s the complete machine at a very affordable price.
TRAVEL
X Axis 50”
Y Axis 28”
Z Axis 25”
Spindle Nose to Table Surface 5.9” ~ 31”
Spindle Center to Column Front 28.9”
Door Open Width for Work Piece 53.5”
TABLE
Table Size 55.91” × 28”
T-Slots (Width x Quantity) 0.71” × 6 (P=3.94”)
Max. Workpiece Size 50” x 28” x 24.8”
Max. Table Load 3,300 lbs.
Table Height (from the ground) 35.43”
FEEDRATE
Rapid Feedrate - X Axis 2,047 ipm
Rapid Feedrate - Y Axis 2,047 ipm
Rapid Feedrate - Z Axis 1,417 ipm
Cutting Feedrate 0 ～ 787 ipm
Acceleration Time - X Axis 0.98 G
Acceleration Time - Y Axis 0.79 G
Acceleration Time - Z Axis 0.76 G
Torque X Axis 3,942 lbs
Torque - Y Axis 3,942 lbs
Torque - Z Axis 7,548 lbs
AXIS INFO
Ball Screw - X Axis Φ1.77” × P0.63”
Ball Screws – Y & Z Axis Φ1.77” × P0.63”
Linear Guideways - X Axis THK – SRG45LR - 3 Trucks
Linear Guideways - Y Axis THK – SRG55R - 2 Trucks
Linear Guideways - Z Axis THK – SRG55LR - 2 Trucks
X Axis Servo Motor 4.69 HP
Y Axis Servo Motor 4.69 HP
Z Axis Servo Motor 6.03 HP
SPINDLE
Spindle Taper NST No.50 Dual Contact
I.D. of Spindle Bearing Φ4”
Spindle Motor Power 45 (2 min.) / 32 HP
Max. Cutting Torque 417 ft-lbs.
Spindle Speed 50 ～ 12,000 rpm
Spindle Driving Mechanism Built-in
Max. Speed for Rigid Tapping 3,000 rpm
Clamping Force 4,630 +/- 10% lbs
AUTOMATIC TOOL CHANGER
Magazine Capacity 32 Tools
Tool Selection Bi-Direction / Random
Tool Shank Type CT 50 ANSI 5.50 / BT50 JIS6339
Max. Tool Dia. x Length Φ5” × 11.8”
Without Adjacent Tool φ9”
Max. Tool Weight 33.1 lbs.
ATC Cam Box Motor 1.5 HP
ATC Time (Tool to Tool) 2.5 sec
ATC Time (Chip to Chip) 3.8 sec
COOLANT SYSTEM
Cutting Coolant Pump Motor 1.48 HP
Base Wash Pump Motor 1 HP
Pump Flow Rate 15.85 gpm
Pump Pressure 29 psi
Coolant Tank Capacity 92 gal
POWER & AIR REQUIREMENTS
Power Consumption (220V/3PH) 55 KVA
Main Breaker Capacity 145 Amp
Pneumatic Supply 300 (0.6MPa) L/min (ANR)
GENERAL
Foot Print Size (W x D) 153.7” x 115.6”
Machine Height (H) 127.4”
Machine Net Weight 21,164 lbs.
ACCURACY (Full Travel ~ Laser Calibrated)
Positioning Accuracy / Full Stroke 0.0002” (VDI 3441)
Repeatability Accuracy 0.0001” (VDI 3441)
Main Machine Features
Powerful Mitsubishi M830VW CNC Control
Heavily ribbed, Meehanite FC300 Cast Iron
High Torque Integral Spindle Motor from ATE is rated at 45 HP and delivers 417 Ft-Lbs of torque
Integral Motor 12,000 RPM Spindle for high efficiency machining
Spindle Oil Cooler by Inverter Control for Precise Control
DYPEC® Thermal Compensation
Large Size 45mm (X) and 55mm (Y, Z) Cross Roller Linear Rails
Large Diameter Ballscrews 45mm X, Y and Z axis
High Horsepower Servos generating 3,942 lbs Thrust X, Y and 7,548 Lbs in Z
High rapid traverse rates of 2,047 X, Y and 1,889 Z
SSS Gen 4 High Speed Super Smooth Surface for Mold and Die
8,190 Block Look Ahead (540m/min Feed with 1mm/block, 9,000 blocks/secs)
15” Touchscreen display with built in “Operator Convenience” HMI
DYCON® on board simple conversational programming
Floor Space 154” (including chip Conveyor) x 116” depth
Standard Features
32 Station High Speed Automatic Tool Changer
Fully Enclosed Splash Guards
Chip Management System with Scraper Type Chip Conveyor and Wash Down
Flood Coolant and Tool Tip Air Blow
Coolant Thru Spindle Capable
12,000 RPM with 45 HP Integral Spindle capable of achieving 417 FT-Lbs of torque
Built in Integrated Automation setup using Ethernet/IP
Rigid Tap to 3,000 RPM
DYPEC® - Dynamic Predictive Error Compensation
32 GB Of Data Server Memory
2MB Main Memory ** (Capable of running on CF Card 64GB)
Multi Axis CRT/Operator Panel for better Ergonomics
