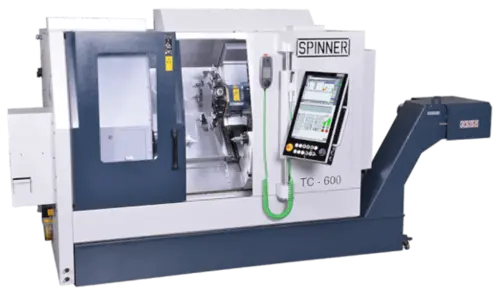

The TC600 is a precision high-performance turning center for short, medium, and high volume turning of complex workpieces. The rigid machine base is a one-piece cast iron design with hardened and ground box guideways resulting in an extremely stable machine with excellent vibration dampening. This model is available with 2.5 in. (65 mm) or 3.3 in. (85 mm) spindle bores on the main spindle or the available second spindle in lieu of a programmable tailstock. Both spindles offer C-axis servo control and cylindrical transformation for complex milling jobs. The high-speed servo driven BMT45 turret made by Spinner has a true Y-axis and provides 16 live tool stations that are independently driven.
Feature Highlights

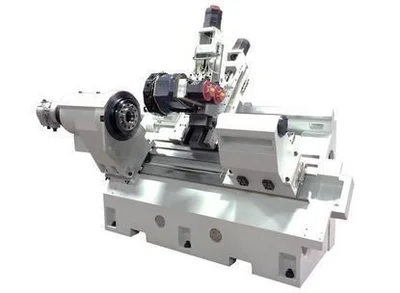

● Box-way type guideways
● Reliable Spinner high speed servo turrets
● Compact design

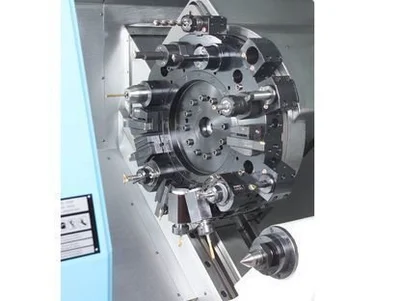

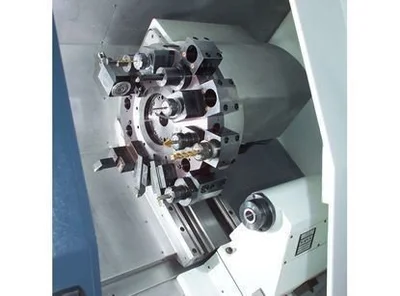

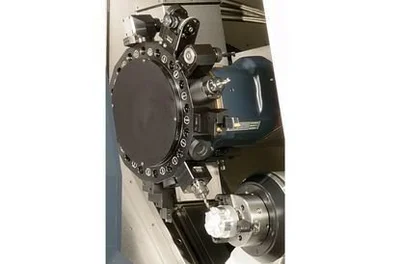

● BTM45 turret with 16 live tool stations
● Panorama windows for an excellent view of the machining process

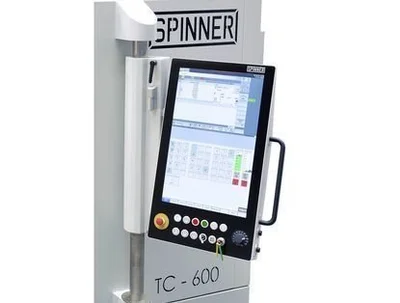

● Adjustable FANUC control panel with the 15“-Screen
● Chip conveyor for moving a high volume of hot chips out of the machine quickly
SPECIFICATIONS
Work Area
Swing diameter: 23.62 in (600 mm)
Maximum turning diameter: 15.74 in (400 mm)
Maximum turning length: 25.5 (650 mm)
Travels
X: 10.82 in (275 mm)
Y: + 1.968 in (50mm) / -1.575 in (40 mm)
Z: 27.5 in (700 mm)
Feedrate
Rapid Traverse X: 590 ipm (15 m/min)
Rapid Traverse Y: 590 ipm (15 m/min)
Rapid Traverse Z: 944 ipm (24 m/min)
Spindle 1
*Liquid cooled motorized spindle with C-axis servo drive and encoder for synchronous machining.
Spindle Bore Capacity: 2.55 in (65 mm)
Speed: 4,000 rpm
Performance (Max): 45.5 hp (34 kW)
Torque (Max): 239.7 ft-lb (325 Nm)
Spindle Nose: DIN / A8
Spindle 2
*Liquid cooled motorized spindle with C-axis servo drive and encoder for synchronous machining.
Spindle Bore Capacity: 1.65 in (42 mm)
Speed: 6,000 rpm
Performance (Max): 24.1 hp (18 kW)
Torque (Max): 81.1 ft-lb (115 Nm)
Spindle Nose: D = 4.33 in (110 mm)
Turret
Driven tool stations: 16
Tool holder type: BMT45
Maximum live tool speed: 6,000 rpm
Horsepower (max): 14.75 hp (11 kW)
Torque (max): 16.2 ft-lb (22 Nm)
Size & Electrical
Technical design according to CE standards.
Machine Dimensions: 102.4 in (2600 mm) x 75.6 in (1920 mm) x 83.9 in (2130 mm)
Machine Weight: 12,786 lbs. (5,800 kg)
Operating Voltage: 3 x 400V (+/- 10%)
Main Frequency: 60 Hz (+/- 2%)
Connection: TN network (5-wire)
CNC Control System
FANUC 32i-TB
Contouring control with FANUC standard user interface
15" LCD flat panel with full keyboard
256 Kbyte user memory
64 program numbers
Work offsets G54-59
64 tool offset pairs + 64 additional
USB interface for loading/saving CNC programs
Ethernet interface
GE FANUC "turning" cycles for threading, deep drilling, machining, grooving.
Contour train programming, cutting radius comp, chamfering and corner rounding
Rigid tapping on all live turret tools
C-axis polar coordinates and cylinder interpolation
Parallel programming in the background
Simple menu-driven conversational programming screens guide the operator through a series of frequently used machining operations.
Inch-Metric switching
Electronic handwheel integrated in control panel
Primary language English with trilingual Spanish/German/French dialogue
Manual Guide-i Conversational programming
Standard Equipment
*2-Year Warranty
210mm 3-Jaw Chuck BHD for Spindle 1
Hard Top Jaws for Chuck 1
165mm 3-Jaw Chuck BHD for Spindle 2
Hard Top Jaws for Chuck 2
Signal lamp on top of machine
Chip conveyor with hinged belt, right exit, with integrated coolant tank & pump
Preparation for 725 psi (50 bar) high pressure coolant pump CTS
Coolant Pistol
Renishaw Tool Setter for tool measurement in the working area to measure the tools in X/Z direction.
UNIMAG bar feeder interface
Parts catcher
Air Nozzle on Spindle 1
Air Nozzle on Spindle 2
Standard documentation in English
