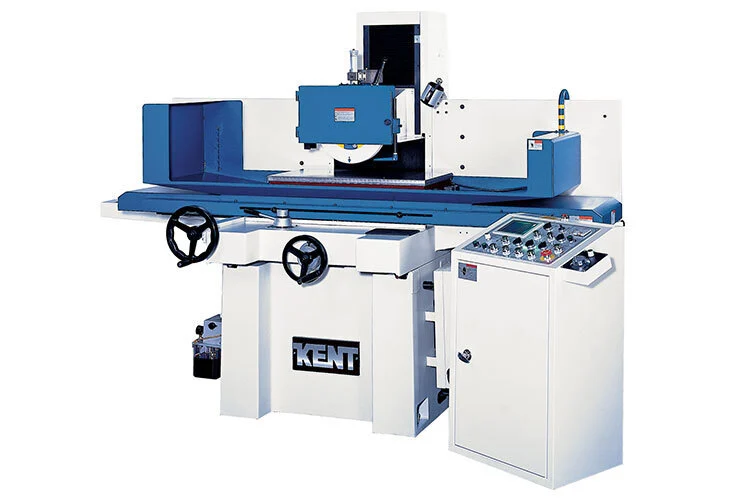

KENT KGS-84WM1 (STOCK)
ConditionNew
1 available
New
Features & Capability
Longitudinal on V-flat scraped guideways
Saddle traveling crossfeed
Motorized rapid elevation
Spindle motor frequency inverter *Optional
Hydraulic oil chiller *Optional
Full enclosure *Optional
Overhead hydraulic wheel dresser
Variable spindle speed *Optional
Surface grinding
Plunge grinding
Main Specifications
Capacity
Overall table working area: 16"x32"
Longitudinal table travel: 36.6"
Crossfeed table travel: 17.75"
Distance spindle center to table: 24"
Grinding Wheel
Wheel dimension (Dia. x W x Bore): 14"x1.5" or 2"x5"
Spindle speed: 1740 RPM
Vertical Movement
Vertical on MPG / Handwheel 1 gra: 0.00005"
Vertical on MPG / Handwheel 1 rev: 0.005"
Auto downfeed increment: 0.00005-0.01"
Motor
Spindle motor: 7.5HP
Dimension & Weight
Machine height: 74"
Floor space: 142"x103"
Net weight: 6160 lbs.
Gross weight: 6600 lbs.
Standard Equipment
*Downfeed Programmable
*M2 Coolant System with Magnetic Seperator
*Orange & Black Full Enclosure Top Open
*460V
Front Table Splash Guard
Three Axis Automatic
Hydraulic Chiller Fan
Electro Magnetic Chuck
Grinding Wheel Flange
Flange Removal Tool
Balance Table
Balance Rod
Grinding Wheel 355x38x127mm
Tool Set
Machine-to-adjust-Sizing-Block
Complete Documentation
