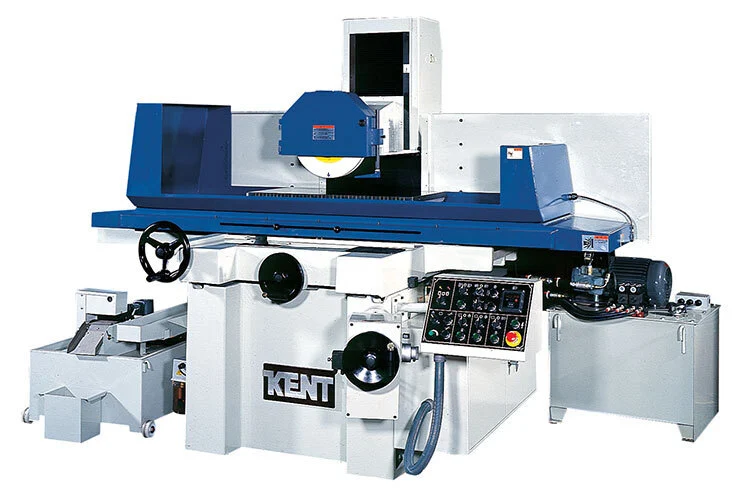

KENT KGS-84AHD (STOCK)
$49,350.00 USD
$44,415.00 USD
ConditionNew
1 available
New
FEATURES & CAPABILITIES:
• Longitudinal on V-flat scraped guideways
• Saddle traveling crossfeed
• Motorized rapid elevation
• Spindle motor frequency inverter *Optional
• Hydraulic oil chiller *Optional
• Full enclosure *Optional
• Overhead hydraulic wheel dresser
• Variable spindle speed *Optional
• Surface grinding
• Plunge grinding
Main Specifications
Capacity
Overall table working area: 16"x32"
Longitudinal table travel: 36.25"
Crossfeed table travel: 17.75"
Distance spindle center to table: 23.6"
Grinding Wheel
Wheel dimension (Dia. x W x Bore): 14"x1.5" or 2"x5"
Spindle speed: 1740 RPM
Vertical Movement
Vertical on MPG / Handwheel 1 gra: 0.00005"
Vertical on MPG / Handwheel 1 rev: 0.025"
Auto downfeed increment: 0.00025-0.00125"
Motor
Spindle motor: 7.5HP
Dimension & Weight
Machine height: 74"
Floor space: 141"x108"
Net weight: 6160 lbs.
Gross weight: 6760 lbs.
Standard Equipment
*460V
*Coolant System & Magnetic Seperator 150L + M2 1/4HP
Front Table Splash Guard
Three Axis Automatic
Electro Magnetic Chuck
Two Axis Linear Scale and DRO (Kent Brand)
Grinding Wheel Flange
Flange Removal Tool
Balance Table
Balance Rod
Grinding Wheel 355x38x127mm
Tool Set
Machine-to-adjust-Sizing-Block
Complete Documentation
