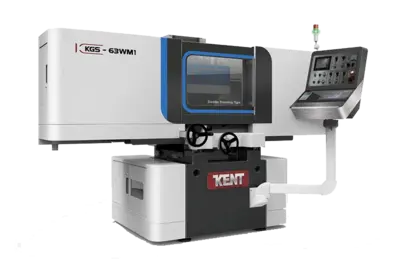

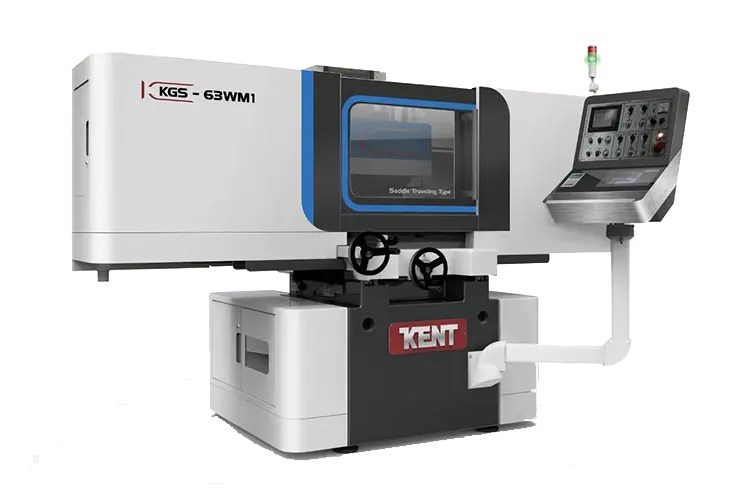

KENT KGS-63WM1 (STOCK)
ConditionNew
1 available
New
Features & Capability
Downfeed Programmable
Longitudinal on V-flat scraped guideways
Saddle traveling crossfeed
Motorized rapid elevation
Spindle motor frequency inverter *Optional
Hydraulic oil chiller *Optional
Full enclosure *Optional
Overhead hydraulic wheel dresser
Variable spindle speed *Optional
Surface grinding
Plunge grinding
Capacity
Overall table working area - inch 12 x 24
Longitudinal table travel - inch 28
Crossfeed table travel - inch 13.5
Distance spindle center to table - 24
Grinding Wheel
Wheel dimension (Dia. x W x Bore) - inch 14 x 1.5 or 2 x 5
Spindle speed - RPM 1740
Vertical Movement
Vertical on MPG / Handwheel 1 gra - inch 0.00005
Vertical on MPG / Handwheel 1 rev - inch 0.005
Auto downfeed increment - inch 0.00005-0.01
Motor
Spindle motor - HP 7.5
Dimension & Weight
Machine height - inch 72
Floor space - inch 102 x 99
Net weight - LB 3850
Gross weight - LB 4290
Standard Equipment
*Downfeed Programmable
*Orange and Black Full Enclosure Top Open
*460V
Coolant System with Magnetic Seperator
Front Table Splash Guard
Three Axis Automatic
Hydraulic Chiller Fan
Electro Magnetic Chuck
Grinding Wheel Flange
Flange Removal Tool
Balance Table
Balance Rod
Grinding Wheel 355x38x127mm
Tool Set
Machine-to-adjust-Sizing-Block
Complete Documentation
