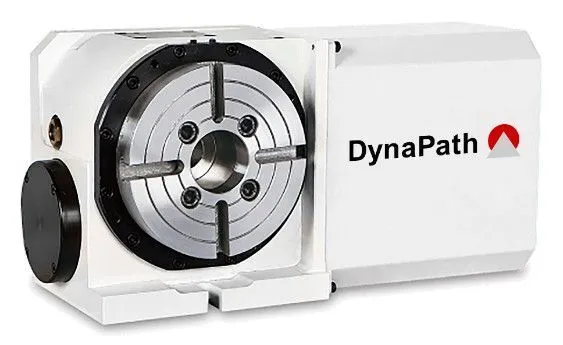

The DynaPath Rotary CNC System is a standalone CNC control paired with a rotary table unit that integrates with any Machining Center, Drill Tap Center, or Milling Machine as a simple and cost-effective upgrade to enable indexing capability. Depending on the machining requirements, a single axis and a dual axis type rotary table are offered.
The DynaPath Rotary CNC Control can be programmed for up to 100 absolute or incremental positions, and communicates with the primary CNC via discrete I/O controlled by PLC or M-Code commands.
DynaPath Single Axis Rotary Tables feature high resolution 24-Bit encoders, a uniform pneumatic braking system, and two sets of precision oblique angle roller bearings to offer excellent accuracy and rigidity for rotary indexing. Rotary Tables are offered in many sizes and specifications.

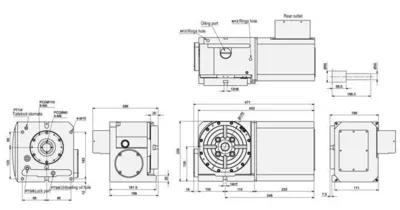

Turntable Diameter: 6.69"
Center Height: 5.31"
Max Through Hole Diameter: 1.18"
Overall Height: 7.43"
Table Bore Diameter: 2.17"
Table T-Slot Width: 0.47"
Positioning Guide Block: 0.55"
Rotation Speed: 0-66 RPM
Max Load Capacity, Vertical: 165 lbs.
Max Load Capacity, Horizontal: 330 lbs.
Gear Ratio: 60:1
Brake Type: Pneumatic
Brake Torque: 332 lbs.-ft.
Max Cutting Load, Vertical: 165 lbs.
Max Cutting Load, Horizontal: 332 lbs.-ft.
Max Cutting Load, Side: 664 lbs.-ft.
Programmable Resolution: 0.01 Degrees
STD Repeatability: 4 sec
STD Total Angular Accuracy: 20 sec
Net Weight Without Motor: 143 lbs.
CONTROL SPECIFICATIONS:
7" Touchcreen LCD Display
256 MB Program Storage
Up to 100 Abs/Inc Steps Per Program
1x USB, 1x LAN Port
3 Jog Speeds + 3 Auto Speeds
C-Axis or Spindle Mode
Backlash + Position Compensation
Jog, Incremental Jog, MPG Manual Modes
Handheld MPG Jog Unit Option
ROTARY FEATURES:
Mechatrolink-II Digital Interface Servo Drive
24-Bit Line Encoder Resolution
Uniform Braking & Clamping System
Precision Oblique Angle Roller Bearings
Front and Rear Bearing Sets
ADDITIONAL OPTIONS:
Base Plate
Tailstock, Disk Type
Tailstock, Manual Quill Type
L-Plate
Bridge Plate
