Nexturn is the industry leader in Swiss type CNC lathes. Nexturn has many industry firsts, including the first to produce a 38mm CNC Swiss machine. The use of top quality components combined with cutting edge technology produces a state-of-the-art machine with industry leading performance. Nexturn machines use only the best components:
• Fanuc CNC controls and motors (Japan)
• NSK ballscrews and THK linear guideways (Japan)
• NSK bearings (Japan) and FAG bearings (Germany)
• KHK gears (Japan)
• Mayr couplings (Germany)
• CKD pneumatic valves (Japan)
• SMC pneumatic cylinders (Japan)
• Daikin hydraulic pump and valves (Japan)

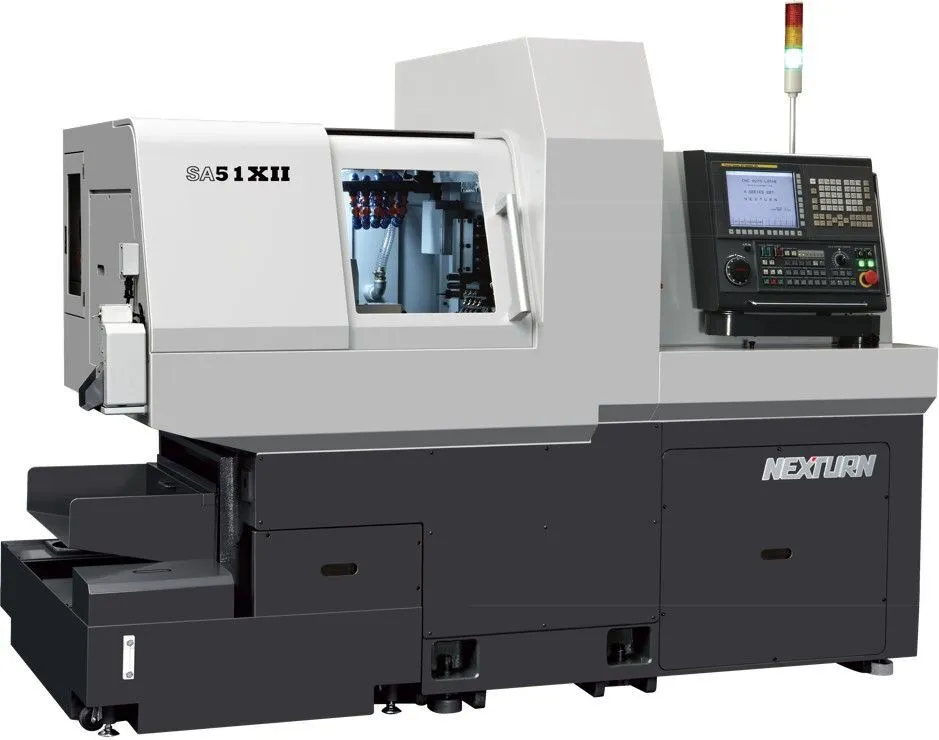

The SA51XII is our high-level 51mm machine without a rotary synchronous guide bushing. It features up to 8 total axes (Z1, X1, Y1, Z2, X2, Y2, C1, and C2) and up to 22 total tools. Machining capacity is 51mm on the main spindle, 51mm on the sub spindle, and 150mm (5.9”) maximum turning length in one chucking.
The machine is built for rigidity, accuracy, reliability, and ease of use. The highly rigid one piece cast iron machine bed is designed using FEM software. Powerful motors for both turning and milling deliver outstanding machining capability. The use of ultra-precision pre-tensioned ballscrews and LM guides produce high accuracy. High speed positioning of 944”/min reduces cycle times. A sliding operator’s door, as opposed to a lift up style door, provides easy access to the machining area and is drip free.
Spindles are the heart of the machine. The main spindle is a 17.5HP, 6000 RPM built-in motor spindle. The built-in motor provide outstanding acceleration / deceleration. The full Cs axis on both main and sub spindles with .001 degree position and hydraulic disc brake clamping provide high rigidity for milling operations. The synchronous sub spindle allows simultaneous front and back working to be performed. The sub spindle also features a 20HP built-in motor spindle with full C axis and hydraulic disc brake for rigid milling operations
Powerful live tools sporting 3HP and 6,000 RPM on the cross mill unit and 1.3HP and 5,000 RPM on the backend face tools, provide excellent drilling and milling ability. A wide range of milling, drilling, and tapping can be performed. ER-16 collets for the live tools provide excellent rigidity. Rigid tapping is standard.
The SA51XII features a non-guide bearing structure. No guide bushing allows for short parts, reduced remnant length (only 70mm), and the ability to run cold drawn material and / or other non-ground bar stock.
Machining Capacity
Maximum Bar Turning Diameter: 2" (51mm)
Maximum Bar Turning Length: 5.9" (150mm)
Maximum Main Spindle Drilling / Tapping: .787” (20mm) / .63” (16mm)
Maximum Sub Spindle Chucking Diameter: 2" (51mm)
Maximum Back End Face Drilling / Tapping: .5" (13mm) / .4” (10mm)
Maximum Cross Drilling / Tapping: .63" (16mm) / .472” (12mm)
Maximum Disc - Mill Diameter: 1.97" (50mm)
Spindles
Main Spindle Motor (Integral built-in motor): 17.5 HP
Main Spindle RPM: 0-6000
Main Spindle Cs Axis Positioning: .001 degrees
Sub Spindle Motor (Integral built-in motor): 20 HP
Sub Spindle RPM: 0-6000
Sub Spindle Cs Axis Positioning: .001 degrees
Live Tool Spindle Motor for Cross Mill / Drill: 3 HP
Live Cross Spindle Speed: 0-6000 RPM
Back Side Face Live Tools Motor: 1.3 HP
Back Side Spindle Speed: 0-5000 RPM
Tooling System
Total Number of Tools: 22
OD Tools / Cross Live Tools / Y Axis ID Tools: 6 / 3 / 7 (3 live)
Front End Face Tools (Sub): ----------
Back End Face Tools: 6 std. (3 fixed, 3 live)
O.D. tool shank size: .75” square shank (20mm)
I.D. / live tool shank size: ER-16
Feeds
Rapid Traverse Rate: 1260 IPM
Cutting feed rate: .039 - 236 IPM
General
Coolant tank capacity: 80 gallons
Coolant pump motor: 2 HP
Machine Weight: 9,240 LBS
Floor Space: 102" X 69" x 75"
Spindle Center Height: 39.4” (1000mm)
Machine Power Source: **208/220 Volts, 3 Phase 60A**
Standard Machine Accessories
FANUC OiT-F Plus DUAL PATH CONTROL
SIMULTANEOUS MAIN & SUB SPINDLE CONTROL
AC SERVO AXES CONTROL
NO GUIDE BUSHING
MPG PROGRAM CHECK
MAIN SPINDLE, RIGID SPINDLE POSITIONING (0.001 DEGREE)
SUB SPINDLE, RIGID SPINDLE POSITIONING (0.001 DEGREE)
MAIN SPINDLE, HYDRAULIC BRAKE SYSTEM
SUB SPINDLE, HYDRAULIC BRAKE SYSTEM
PART EJECTION DETECTION
AIR BLOW BY M-CODE
PART CONVEYOR WITH STOCKER BASE
MAIN SPINDLE COLLET CHUCK
SUB SPINDLE COLLET CHUCK
CROSS DRILL / MILL UNIT ( 4 TOTAL – 4 MODULAR), SPEED 200 – 6,000 RPM
SIX BACK-END FACE DRILLING STATION (3 LIVE, 3 FIXED)
SIX POSITION OD TURNING HOLDER (20mmx125mm)
SEVEN POSITION ID TOOLS (3 LIVE, 4 FIXED)
LEVELING BOLTS AND PADS
SET OF SERVICE TOOLS
SERVICE TOOL BOX
WORK LIGHT
TOOL SETTING GAGE
3 COLOR STATUS LIGHT TOWER
CENTRALIZED LUBE SYSTEM
CUTTING OIL TANK
CUTTING OIL FLOW DETECTOR
MACHINE ACCURACY TEST CHART
PARAMETER LIST
ONE COMPLETE SET OF FANUC MANUALS (ENGLISH)
ONE SET OF NEXTURN MANUAL (ENGLISH)
