MT1530-5S
$1,400,000.00 USD
ConditionNew
1 available
New

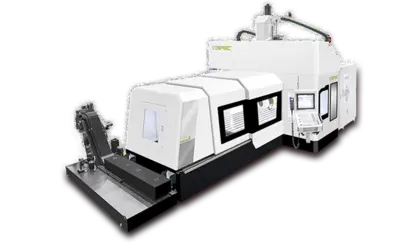

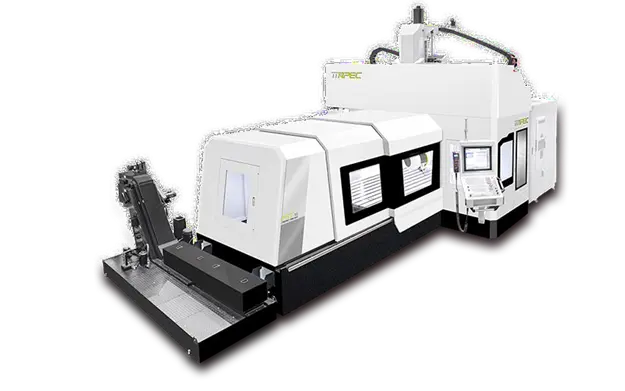

APEC MT1530-5S, a new 5-axis gantry machining center, offers exceptional precision and versatility for complex machining tasks.
Heidenhain TNC640 5-axis CNC controller with HR510 MPG
AGA mono type 2-axis milling head
AGA, HSK100A, 15,000rpm, 45 / 54 kW(S1/S6), 119 / 143 Nm(S1/S6), built-in spindle×1
ATC with HSK100A, Tool magazine 32T
Fully enclosure Splash Guard
X/Y/Z-axis with high speed ball-screw drive
X/Y/Z-axis with high rigidity roller type linear guide-way
X/Y/Z/A/C-axis with Heidenhain Linear/ Circular optical scale
Air-conditioner for electrical cabinet
Spindle chiller
Coolant around spindle
Oil-air lubrication device for spindle
Oil mist around spindle
Chip auger system
Standard coolant tank
Safety interlock of front and back door
Water-proof working lamp
FOB OHIO
| APEC STOCK SPECS |
(1) Automatic kinematics measurement & calibration system with ceramic ball set $8,000
(2) CTS 70 bar (1000 PSI) $13,900
(3) 60 Tool ATC instead of 32 Tools $30,000
(4) BLUM laser tool measurement system $13,000
(5) BLUM work piece touch probe $13,000
