New QUICK-TECH T8 TWIN Y | 5-Axis or More CNC Lathes
ConditionNew
New

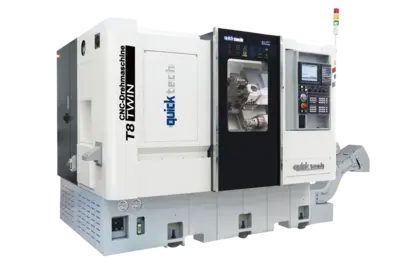

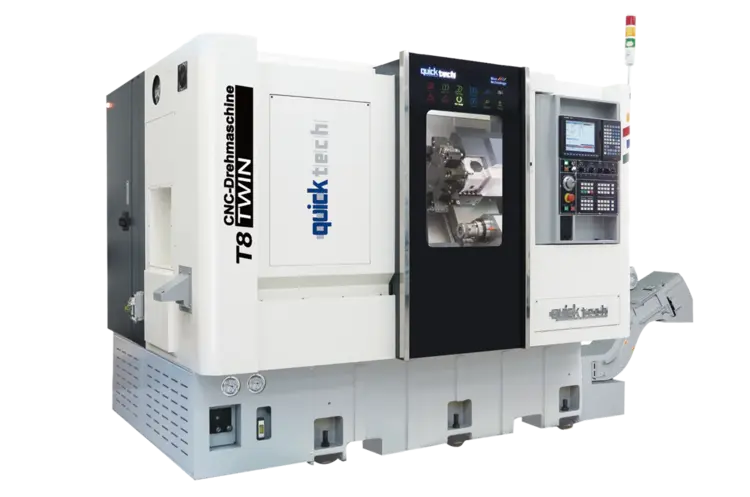

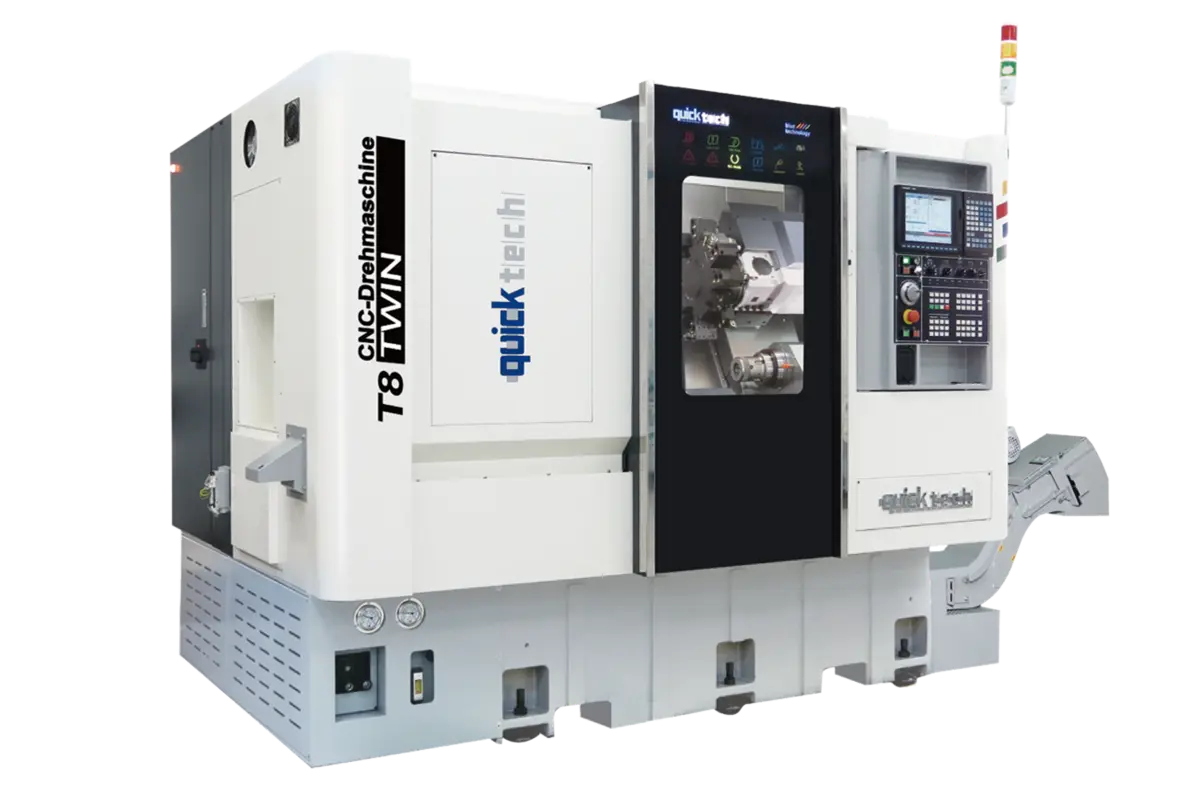

The QuickTECH T8 TWIN Y combines a powerful 2.5” bar capacity main spindle utilizing a 3 axis BMT-55 power turret with a sub spindle. This, high production CNC turning center is cast from Meehanite iron. With a 65mm bar capacity, this unique bar processing center provides complete part machining including complex milling functions. The T8 TWIN features 6 total axes, 2 turning spindles, 1 live milling turret, and a minimum capacity of 12 tools. .
Turning Spindles
The main spindle sports a 20HP high torque spindle motor. The sub-spindle is equipped with a 7.5HP high torque spindle motor for backworking. The main spindle has a 65mm bar capacity and the sub-spindle has a 32mm bar capacity. Both spindles feature a full continuous C axis with braking system. The main spindle is standard with an 8” 3 jaw hydraulic chuck. The sub spindle is standard with 6” 3 jaw hydraulic chuck. Collet chucks are available for both spindles. The main and sub-spindle are synchronized for fast and accurate part transfer. Both spindles employ P4 high precision bearings for stability and heavy cutting ability.
Tooling System
The machine features a rigid 12 station BMT-55 live turret with 5HP spindle motor and 80mm of true linear Y axis travel. The turret features fast servo motor index and rigid hydraulic clamping. All 12 stations can be live. Furthermore, with the standard Y axis, each station can be gang tooled allowing up to 36 total tools. Rigid tapping is standard in the turret.
Construction
The machine frame and all major components are made from the highest quality cast iron. The machine weighs in at an impressive 12,540 lbs. The bed is a one piece 75 degree slant bed. The turret Y axis is a true linear axis, perpendicular to X for ultimate precision. The T8 TWIN Y uses large, 35mm Hiwin roller type linear guideways in all linear axes. The 35mm rails increase stability and allow heavier cutting. The large 32mm ballscrews are double anchored, pre-tensioned and direct coupled to the Mitsubishi servo motors thus promoting precision.
CNC Controls
The machine is equipped standard with the fully featured and powerful Mitsubishi M80A control with 10.4” LCD. All spindles and axes use Mitsubishi AC servo motors and Mitsubishi amplifiers. The completely matched Mitsubishi CNC system provides extreme reliability and high performance. A 3 year warranty is standard on the CNC system. Optionally, the Fanuc OiT-F with 10.4” LCD and Manual Guide i Conversational is available. The Fanuc system utilizes all Fanuc servo and spindle motors and drives and comes with a standard 2 year warranty.
Standard Features
The machine come with standard features necessary for production turning such as 3 jaw chucks for main and sub, parts catcher, parts conveyor, 75 PSI coolant pump, chip conveyor, and bar feeder interface.
Main Spindle Capacity
Swing over bed: 19.7”
Swing over cross slide: 11.8”
Chuck type: 8” 3-jaw hydraulic
Maximum bar working capacity: 2.56” (65mm)
Maximum turning length: 13.8”
Distance between main chuck face and sub spindle chuck face: 15.7”
Spindle nose: A2-6
Hole through draw tube: 2.6” (66mm)
Spindle speed range (std.): 4000 RPM
Spindle motor: 20HP
C axis increment: .001 degrees
Sub Spindle Capacity
Maximum bar working capacity: 1.65” (42mm)
Maximum turning length: 13.2”
Chuck Type: 6” 3-jaw hydraulic
Spindle nose: A2-5
Hole through draw tube: 1.26”
Spindle speed range: 4000 RPM
Spindle motor: 7.5HP
C axis increment: .001 degrees
Travel and Feed
Maximum cross travel (turret X axis): 9.05”
Maximum off center travel (turret Y axis): 3.15” (+/- 1.57”)
Maximum longitudinal travel (turret Z1 axis): 15.7"
Maximum sub spindle travel (Z2 axis): 15.15”
X, Y, Z1, Z2 servo motors: 2 HP
Ballscrew diameter x pitch: 1.25” (32mm) x 10mm pitch
Rapid traverse rate: 1181”/ min.
Turret Tooling System
Tooling type: BMT-55 servo turret
Number of tools: 12
Number of live tool stations: 12
Square shank size: 1” (25mm)
Boring bar capacity: 1.25” (25mm)
Turret index time: .3 secs / station, .5 secs 180 degrees
Live tool spindle motor: 5HP
Live tool spindle speed: 4000
General
Positioning accuracy: +/- .0002" full stroke
Repeatability: +/- .00015"
Coolant tank capacity: 65 gallons
Coolant pump motor: 1 HP flood
Machine Weight: 12,540 LBS
Floor Space with chip conveyor: 132" X 65" x 69"
Machine Power Source: 208/220 Volts, 3 Phase 100 Amps**
Hydraulic pump motor: 1HP
Standard Machine Accessories
1 set of BMT-55 turret static tool holders including 6 O.D. turning tool holders and 6 I.D. boring bar holders
(1) 8” 3 jaw hydraulic chuck for main spindle and (1) 6” 3 jaw chuck for sub spindle)
Parts catcher
Parts conveyor
Chip Conveyor
Bar feeder interface
75 PSI / 20 GPM flood coolant pump
Full enclosed machine guards
Auto lubrication system
1 set of machine and control manuals
