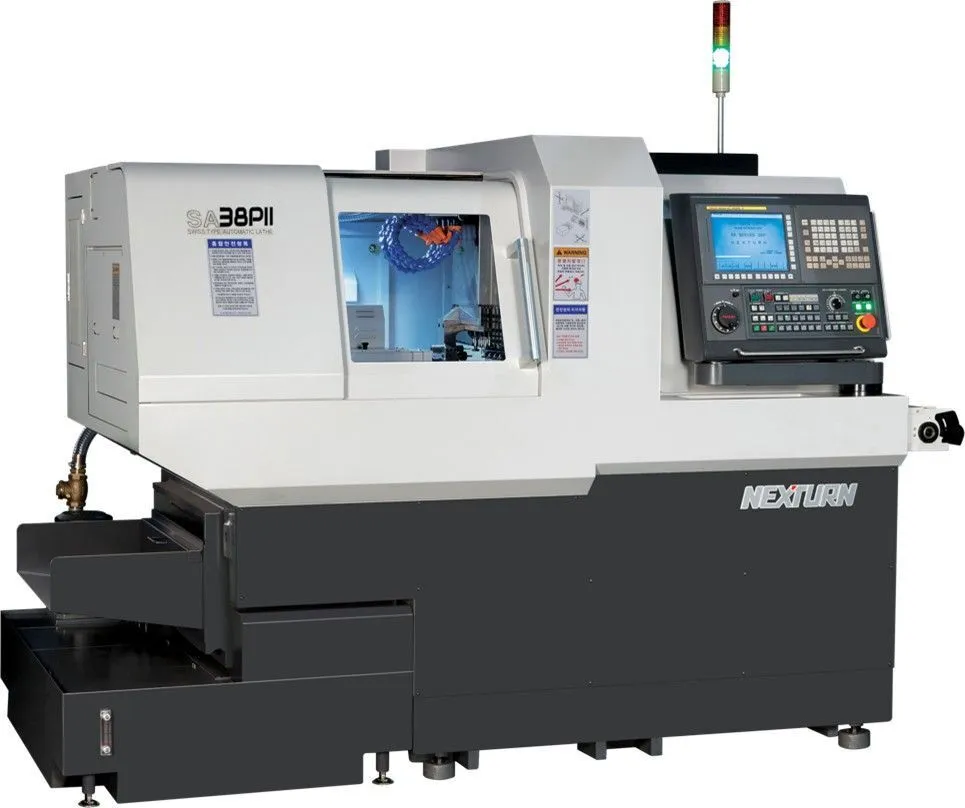

New NEXTURN SA-38PII | Swiss Type Automatic Screw Machines

STANDARD MACHINE ACCESSORIES
FANUC 0iT-F PLUS CONTROL, DUAL PATH CONTROL
SIMULTANEOUS MAIN & SUB SPINDLE CONTROL
AC SERVO AXES CONTROL
FULL STROKE SYNCHRONOUS TYPE ROTARY-GUIDE BUSHING UNIT
MPG PROGRAM CHECK
CROSS DRILL / MILL UNIT ( 4 SPINDLE ), SPEED 200 – 6,000 RPM
MAIN SPINDLE, RIGID SPINDLE POSITIONING (0.001 DEGREE)
SUB SPINDLE, RIGID SPINDLE POSITIONING (0.001 DEGREE)
MAIN SPINDLE, PNEUMATIC BRAKE SYSTEM
SUB SPINDLE, PNEUMATIC BRAKE SYSTEM
PART EJECTION DETECTION
AIR BLOW BY M-CODE
PART CONVEYOR WITH STOCKER BASE
MAIN SPINDLE COLLET CHUCK ADAPTOR FOR TF44
SUB SPINDLE COLLET CHUCK ADAPTOR FOR TF44
GUIDE BUSHING ADAPTOR FOR TD38
ONE FRONT-END FACE DRILLING STATION – (ONE FIXED)
FOUR BACK-END FACE DRILLING STATION (FOUR FIXED TOOLS)
FIVE POSITION OD TURNING HOLDER (16mmx16mm)
FIVE POSITION Y AXIS ID TOOL UNIT
LEVELING BOLTS AND PADS
SET OF SERVICE TOOLS
SERVICE TOOL BOX
WORK LIGHT
TOOL SETTING GAGE
3 COLOR STATUS LIGHT TOWER
CENTRALIZED LUBE SYSTEM
CUTTING OIL TANK
CUTTING OIL FLOW DETECTOR
MACHINE ACCURACY TEST CHART
PARAMETER LIST
ONE COMPLETE SET OF FANUC MANUALS (ENGLISH)
ONE SET OF NEXTURN MANUAL (ENGLISH)
