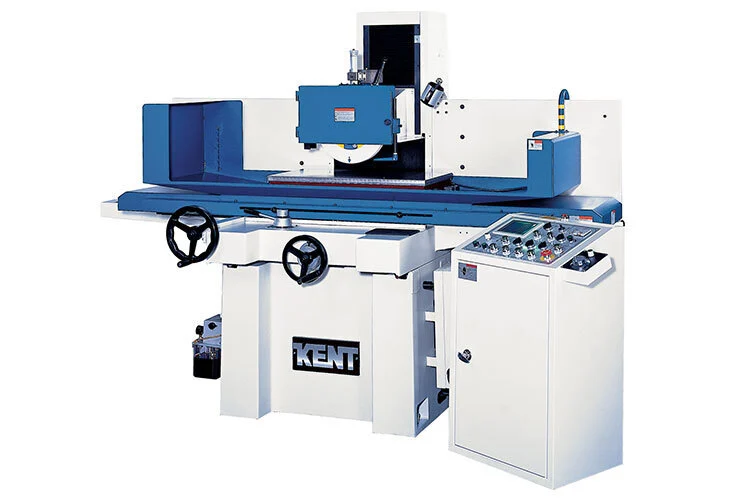

KENT KGS-84WM1
ConditionNew
New
Features & Capability
Longitudinal on V-flat scraped guideways
Saddle traveling crossfeed
Motorized rapid elevation
Spindle motor frequency inverter *Optional
Hydraulic oil chiller *Optional
Full enclosure *Optional
Overhead hydraulic wheel dresser
Variable spindle speed *Optional
Surface grinding
Plunge grinding
Main Specifications
Capacity
Overall table working area: 16"x32"
Longitudinal table travel: 36.6"
Crossfeed table travel: 17.75"
Distance spindle center to table: 24"
Grinding Wheel
Wheel dimension (Dia. x W x Bore): 14"x1.5" or 2"x5"
Spindle speed: 1740 RPM
Vertical Movement
Vertical on MPG / Handwheel 1 gra: 0.00005"
Vertical on MPG / Handwheel 1 rev: 0.005"
Auto downfeed increment: 0.00005-0.01"
Motor
Spindle motor: 7.5HP
Dimension & Weight
Machine height: 74"
Floor space: 142"x103"
Net weight: 6160 lbs.
Gross weight: 6600 lbs.
Standard Equipment
*Downfeed Programmable
Front Table Splash Guard
Three Axis Automatic
Hydraulic Chiller Fan
Electro Magnetic Chuck
Coolant System with Magnetic Seperator
Grinding Wheel Flange
Flange Removal Tool
Balance Table
Balance Rod
Grinding Wheel 355x38x127mm
Tool Set
Machine-to-adjust-Sizing-Block
Complete Documentation
