New SEIKI XT-6000S/2SP | Drilling & Tapping Centers

Description

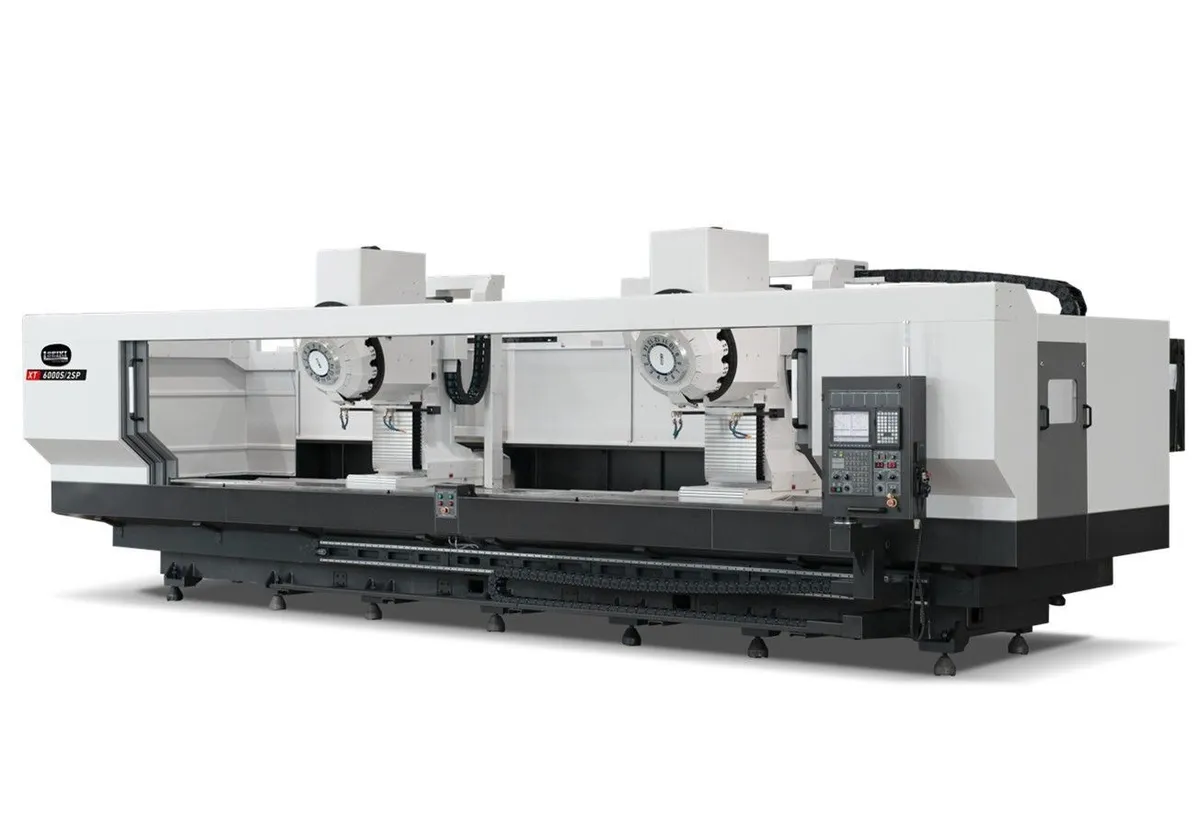

The XT-6000S/2SP is the fastest CNC long travel milling and tapping center in its class and is also well suited to high volume machining as well high-speed 3D machining. This machine will exceed the demands of any manufacturer with high volume, high precision machining needs. The machine is a fixed table / moving column type design with twin 3 axis moving columns. The moving column design saves valuable floor space. This machine has excellent ergonomics with the chip exit in the rear of the machine and the sliding door design, the table is within easy reach. The operators panel can travel nearly the full length of the machine for ease of use.

It features a fabricated steel base with Meehanite cast iron column and table assembly and rigid roller type linear slideways for rigidity and fast, precise movement. The X axis features a linear motor with scale feedback system for fast (1181”/min) rapid travel. 32mm (1.26”) diameter YZ axis ballscrews are class 3 with a double nut pre-loaded design allowing a standard rapid traverse rate of 1969 inches per minute Z and 1890 inches per minute in Y with industry leading acceleration of 1.0G in the Z axis. The ABS (Absolute Pulse Coder) servo system does not require zero return. The machine can be started anytime from any position, saving non-productive time. A standard bed flushing system pushes chips to the rear of the machine. The optional caterpillar type chip conveyor provides efficient chip removal.

The XT-6000S/2SP is standard with a 14-tool servo turret type ATC for each spindle. The turret style servo automatic tool changer provides fast, reliable tool selection. Complete tool change time is only 1.4 seconds tool to tool and 2.2 seconds chip to chip.

The standard spindles are 7.4HP 30 min. / 5HP continuous, 15,000 RPM direct drive spindles that provides rigid tap speeds up to 6000 RPM. A spindle chiller is standard. The BBT-30 (Big Plus dual contact) taper is standard for rigid milling. Coolant through the spindle preparation is also standard (pump system optional). 24,000 RPM high speed and 12,000 RPM high torque spindles are optionally available.

The Mitsubishi M80A control is standard and is suitable for a wide range of applications from production to high-speed machining applications. The M80A control features a 10.4” touch screen with intuitive smart phone type operation. A dedicated CNC CPU provides phenomenal processing speeds. An all-new high response servo system with 1,000,000 pulse encoders is provided for state-of-the-art speed and accuracy. The Mitsubishi control comes with an industry leading 3-year parts and labor warranty! The Fanuc OiM-F Plus control with 10.4” LCD and 2-year warranty is also available.
