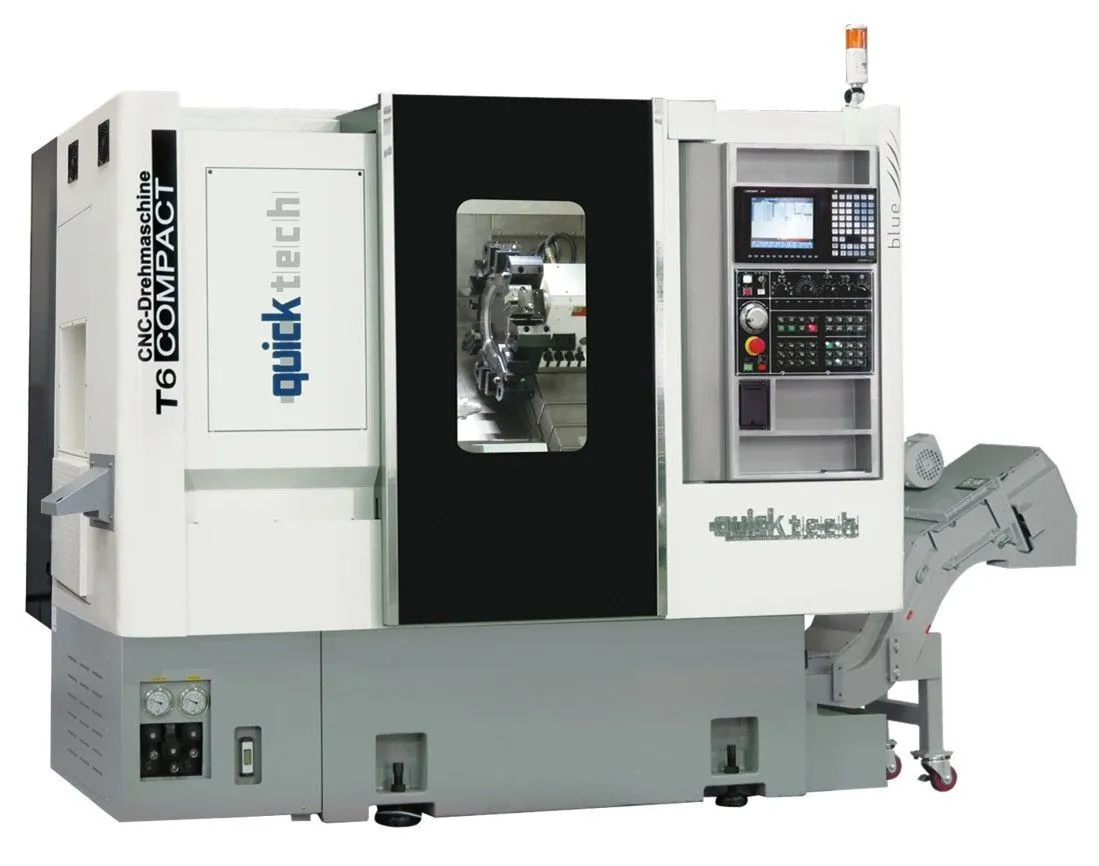

New QUICK-TECH T6 Compact | CNC Lathes

Description

The QuickTECH T6 COMPACT and T6 MILL combine a powerful 15HP 1.65” bar capacity main spindle with a tailstock for economical turning or turn / mill applications. This, high production CNC turning center is cast from Meehanite iron. With a 42mm bar capacity, this unique turning center provides fast and accurate turning functions with optional milling functions.

Turning Spindles
The main spindle sports a 15HP high torque spindle motor as well a 1.65” (42mm) bar capacity. The T6 MILL features a full continuous C axis with braking system. The main spindle is standard with a 6” 3 jaw hydraulic chuck. The spindle employs P4 high precision bearings for stability and heavy cutting ability.

Tooling System
The machine features a rigid 12 station BMT-55 servo turret (BMT-55 live turret with 5HP spindle motor for T6 MILL). Both turrets features fast servo motor index and rigid hydraulic clamping. On the T6 MILL with BMT turret, all 12 stations can be live. Rigid tapping is standard in the BMT live turret.

Construction
The machine frame and all major components are made from the highest quality cast iron. The machine weighs in at an impressive 9,900 lbs. The bed is a one piece 45 degree slant bed. The T6 uses large, 35mm Hiwin roller type linear guideways in all linear axes. The 35mm rails increase stability and allow heavier cutting. The large 32mm ballscrews are double anchored, pre-tensioned and direct coupled to the Mitsubishi servo motors thus promoting precision.

CNC Controls
The machine is equipped standard with the fully featured and powerful Mitsubishi M80A control with 10.4” LCD. All spindles and axes use Mitsubishi AC servo motors and Mitsubishi amplifiers. The completely matched Mitsubishi CNC system provides extreme reliability and high performance. A 3 year warranty is standard on the CNC system. Optionally, the Fanuc OiT-F Plus with 10.4” LCD and Manual Guide i Conversational is available. The Fanuc system utilizes all Fanuc servo and spindle motors and drives and comes with a standard 2 year warranty.

Standard Features
The machine come with standard features necessary for production turning such as an 6” 3 jaw chuck for the main spindle , parts catcher, parts conveyor, 75 PSI coolant pump, chip conveyor, tailstock with programmable quill, and bar feeder interface.
