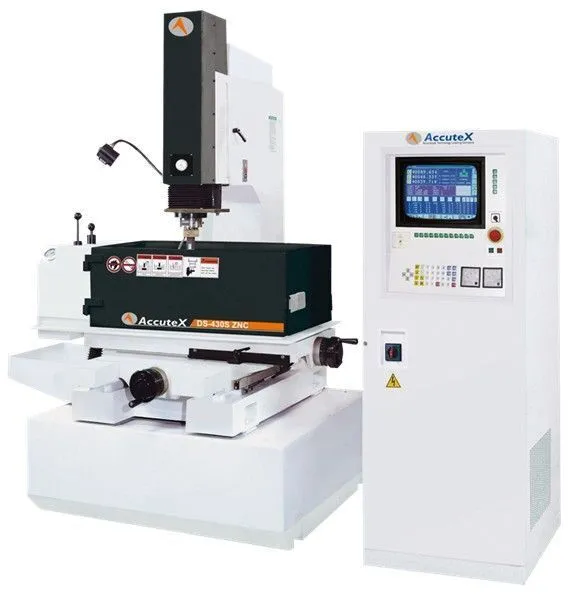

The AccuteX DS-ZNC ram type EDM series machines offer a full range of sizes and capabilities. The ZNC series incorporates rigid heavy duty Meehanite castings designed using Finite Element Analysis (FEA) to ensure high accuracy machining. Premimum grade ultra fine Class 5 ball screws, high resolution 0.0002” linear optical scale for the X,Y and Z axis coupled with high quality linear ways produce smooth, precise operation.
The programmable Z axis incorporates the latest technology including Conversational programming, Fuzzy Logic servo and machining parameter selection, Automatic Arc monitoring and Digital Dual discharge circuitry for fast, low wear, reliable results. The optional COC-280 Orbit cut system, when added the standard Automatic Z Axis Step function, the DS-ZNC series performs like a full 3D machine producing super fine finishes down to 0.18 Ra um and accuracies to 0.0002” easily and efficiently.
Another innovative feature of the DS-ZNC Series is the NC controlled X,Y axis option which is available on all the ZNC models. The affordable NC option allows for a wide range of operations only available on full 3D machines. Multiple cavity positioning, X or Y axis side machining, Auto Centering, Fuzzy Auto Set parameter setting and X,Y Axis orbiting using the COC-280 integrated orbit head make the AccuteX DS-NC series the most cost effective highly productive EDM on the market. Typically applications requiring this kind of capability demand machines costing tens of thousands of dollars more putting the AccuteX DS-ZNC Series in a class of it’s own.
CAPACITIES
X Axis Traverse ........................................................... 16”
Y Axis Traverse ........................................................... 12”
Z Axis Traverse ( servo) .............................................. 7”
Z Axis Traverse Z2 ( workhead) .................................. 10”
Work Table Size .......................................................... 26” x 14”
Maximum Workpiece Size ........................................... 38” x 22” x 14”
Maximum Workpiece Weight ....................................... 1,210 lbs.
Maximum Electrode Weight ......................................... Platen -220 lbs.
Distance from RAM to Table ........................................ 6” – 23”
Axis Drive Motor .......................................................... AC Servo Motor
Floor Space ................................................................. 96” x 69” x 93”
Machine Weight ........................................................... 2,530 lbs.
DIELECTRIC TANK
Tank Capacity (built in) ................................................ 100 gallons
Filtration ...................................................................... 2 each Paper
Grundfos Pumps ......................................................... Standard
Flushing Nozzles ......................................................... 6
Chiller Unit ................................................................... Optional
POWER SUPPLY
Power Supply .............................................................. 60
Maximum Machining Current ....................................... 60 amps
Power Input ................................................................. 4.5 KVA
Minimum Electrode Ware Rate .................................... 0.15%
Best Surface Finish ..................................................... 0.18 Ra um
STANDARD EQUIPMENT
Machine, Generator, Control and Dielectric System, as well as the following items;
Remote Hand Box ...................................................... 1 piece
Auto Fire Extinguisher System ..................................... 1 piece
Tool Box ...................................................................... 1 piece
Clamping Kit ............................................................... 1 set
Halogen Work Light ..................................................... 1 piece
Flush Nozzles .............................................................. 1 piece
Paper Filter ................................................................. 2 each
Drill Chuck ................................................................... 1 piece
Operation and Maintenance Manuals .......................... 1 set
In order to ensure a correct installation and optimum functioning of the machine, it is recommended the following points be taken into consideration:
Electrical:
220 V + 5%, 3 Phase, 60 Hz +/- 5%
Earth Grounding: Impedance <10 ohm maximum
Multi Tap Transformer- optional
Compressed Air:
Dry air, 100 psi
Environmental Conditions:
Temperature: 60-90° F
Humidity: 0-75%
Vibration: 0.5 G
Fast response MOFSET machining circuits.
15” easy to read, full color LCD flat screen display and 32 bit industrial grade computer.
90 sets of Auto Memorized user machining parameters.
“FUZZY” Auto Set machining parameters from roughing to finishing ( maximum 10 steps).
Hardened precision work table with standard T Slots.
Auto Fire Extinguisher with fire and fluid level sensors.
Remote Hand Box.
Turcite-B Ways with one shot lubrication.
Patented adjustable electrode holder.
Flushing ports, 5 emission 1 suction.
Built in dielectric unit space saving design.
