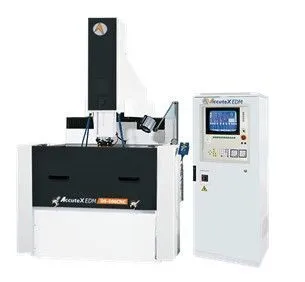

New ACCUTEX DS-500 CNC | EDM Sinkers
Have one to sell?
ConditionNew
New
The AccuteX DS-CNC ram type EDM series machines offer a full range of sizes and capabilities. The CNC series incorporates rigid heavy duty Meehanite castings designed using Finite Element Analysis (FEA) to ensure high accuracy machining. Premimum grade ultra fine Class 5 ball screws, high resolution 0.0002” linear optical scale for the X,Y and Z axis coupled with high quality linear ways produce smooth, precise operation.
The programmable X,Y or Z axis incorporates the latest technology including Conversational programming, Fuzzy Logic servo and machining parameter selection, Automatic Arc monitoring and Digital Dual discharge circuitry for fast, low wear, reliable results. With Automatic Z Axis Step function, the DS-CNC series can orbit in the X,Y plane with several different caned cycles that are available through the conversational interface producing super fine finishes down to 0.18 Ra um and accuracies to 0.0002” easily and efficiently.
The affordable CNC option allows for a wide range of operations only available on full 3D CNC machines. Multiple cavity positioning, X or Y axis side machining, Auto Centering, Fuzzy Auto Set parameter setting makes the AccuteX DS-CNC series the most cost effective highly productive EDM on the market. Typically applications requiring this kind of capability demand machines costing tens of thousands of dollars more putting the AccuteX DS-CNC Series in a class of it’s own.
CAPACITIES
X Axis Traverse ........................................................... 20”
Y Axis Traverse ........................................................... 16”
Z Axis Traverse ........................................................... 14”
Work Table Size .......................................................... 34” x 16”
Maximum Workpiece Size ........................................... 50” x 31” x 20”
Maximum Workpiece Weight ....................................... 5,060 lbs.
Maximum Electrode Weight ......................................... Platen 440 lbs.
Distance from RAM to Table ........................................ 17” – 30”
Axis Drive Motor .......................................................... AC Servo Motor
Floor Space ................................................................. 106” x 98” x 96”
Machine Weight ........................................................... 6,600 lbs.
DIELECTRIC TANK
Tank Capacity ............................................................. 224 gallons
Filtration ...................................................................... 4 each Paper
Grundfos Pumps ......................................................... Standard
Flushing Nozzles ......................................................... 6
Chiller Unit ................................................................... Optional
POWER SUPPLY
Power Supply .............................................................. 60 Amp (90 Amp optional)
Maximum Machining Current ....................................... 60 Amp (90 Amp optional)
Power Input ................................................................. 13.5 KVA
Minimum Electrode Ware Rate .................................... 0.15%
Best Surface Finish ..................................................... 0.18 Ra um
STANDARD EQUIPMENT
Machine, Generator, Control and Dielectric System, as well as the following items;
Remote Hand Box ...................................................... 1 piece
Auto Fire Extinguisher System ..................................... 1 piece
Tool Box ...................................................................... 1 piece
Clamping Kit ............................................................... 1 set
Halogen Work Light ..................................................... 1 piece
Flush Nozzles .............................................................. 1 piece
Paper Filter ................................................................. 2 each
Drill Chuck ................................................................... 1 piece
Operation and Maintenance Manuals .......................... 1 set
In order to ensure a correct installation and optimum functioning of the machine, it is recommended the following points be taken into consideration:
Electrical:
220 V + 5%, 3 Phase, 60 Hz +/- 5%
Earth Grounding: Impedance <10 ohm maximum
Multi Tap Transformer- optional
Compressed Air:
Dry air, 100 psi
Environmental Conditions:
Temperature: 60-90° F
Humidity: 0-75%
Vibration: 0.5 G
Fast response MOFSET machining circuits.
15” easy to read, full color LCD flat screen display and 32 bit industrial grade computer.
90 sets of Auto Memorized user machining parameters.
“FUZZY” Auto Set machining parameters from roughing to finishing ( maximum 10 steps).
Hardened precision work table with standard T Slots.
Auto Fire Extinguisher with fire and fluid level sensors.
Remote Hand Box.
Turcite-B Ways with one shot lubrication.
Patented adjustable electrode holder.
Flushing ports, 5 emission 1 suction.
