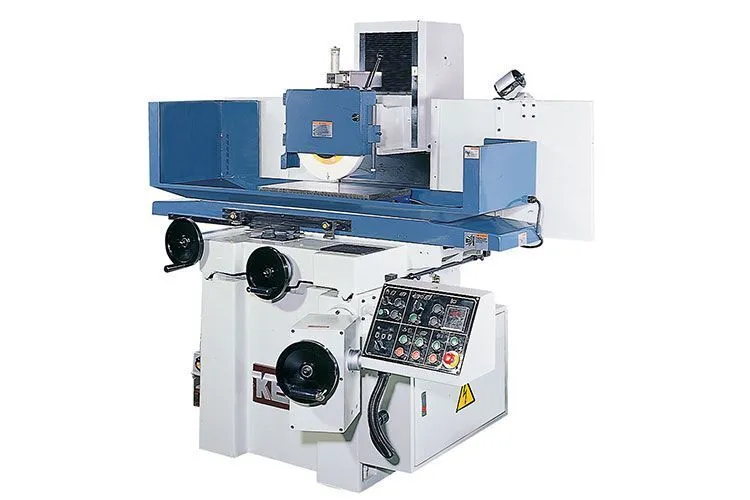

KENT KGS-63AHD 3-AXIS AUTOMATIC PRECISION SURFACE GRINDER
ConditionNew
New
Longitudinal on V-flat scraped guideways
Saddle traveling crossfeed
Motorized rapid elevation
Spindle motor frequency inverter *Optional
Hydraulic oil chiller *Optional
Full enclosure *Optional
Overhead hydraulic wheel dresser
Variable spindle speed *Optional
Surface grinding
Plunge grinding
Main Specifications
Max. Travel (Longitudinal x Cross): 27-15/16"x13-3/8"
Max. Distance Spindle Center To Table: 24"
Automatic Down-feed Increment: 0.00025” to 0.00125” in 5 steps
Grinding Wheel ( OD x T x ID ): 14"x1-1/2"x5"
Grinding Wheel Speed: 1740rpm
Spindle Motor: 7.5HP (220/440/60/3)
Hydraulic Motor: 2HP (220/440/60/3)
V & Flat Turcite Table Ways
Hydraulic Table
Solid State Control Cross-feed
Double-V Turcite Cross Ways
Auto Lubricating Pump
Auto Incremental Down-feed
Fully Automatic Cycle Control with Spark-Out & Auto Stop
12”x24” Electric Magnetic Chuck With “Kent” Chuck Control
Full Length Rear Splash Guard
Two Front Table Splash Guard
Over Head Parallel Dresser
Magnetic Separator & Coolant System
Halogen Light
2 axis “KENT” Digital Read Out System
Wheel Balancing Base
Grinding Wheel
Table Dresser
Wheel Balancing Arbor
Wheel Flange
Tools & Tool Box
