New SPINNER TTS-65 TWIN | CNC Lathes
Have one to sell?
ConditionNew
New

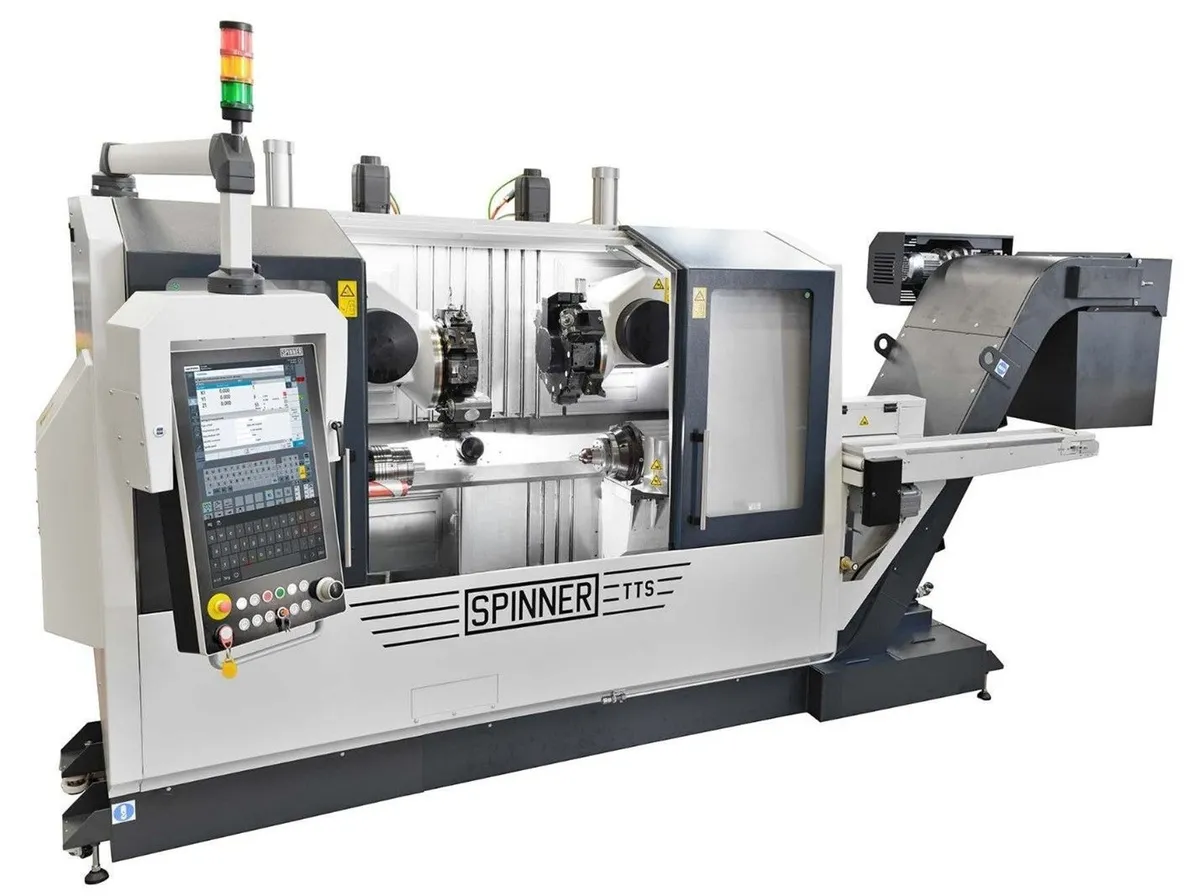

The TTS-Twin is a multitasking high-performance turning center for simultaneous machining for medium and high volume turning of complex workpieces with two independent high-speed servo driven turrets made by Spinner. Both turrets operate independently on the main or counter-spindle or can work on one spindle at the same time if desired. Each turret features our special anti-vibration damping system which absorbs micro vibrations generated during the machining the process for up to 50% higher cutting performance than turrets without dampening technology. This makes it possible to finish turn on the counter-spindle while roughing on the main spindle with no negative effect on part finishes. The turrets have 12 live tool stations per turret and are available with BMT45 or VDI25 tool holder style. This model is available with main and counter-spindle bore capacities of 42mm (1.65""), 65mm (2.55""), 85mm (3.34""), 125mm (4.92""). Both spindles offer C-axis servo control and cylindrical transformation for complex milling jobs. Control systems include Fanuc or Siemens.
TRAVELS
Turret #1 (Top Right)
X1: 7.08"
Y1: 3.54"
Z1: 27.72"
Turret 21 (Top Left)
X2: 7.08"
Y2: 3.54"
Z2: 24.41"
SPINDLE #1 (LEFT) / SPINDLE #2 (RIGHT)
Spindle Bore Capacity: 2.55" (65mm)
Spindle Speed: 5,000 RPM
Spindle Nose: DIN/A6
TURRETS x2
Stations per Turret: 12/BMT45
Live Tooling Speed: 8,000 RPM
Performance: 5.8HP (4.3kW)
Torque: 10 ft-lb. (13.6Nm)
SIZE & ELECTRICAL
Machine Dimensions: 113.4" x 83.9" x 78.3"
Machine Weight: 16,755 lbs.
Operating Voltage: 3 x 400V
Main Frequency: 60Hz (+/- 2%)
Networking: TN Network (5-wire)
CNC CONTROL SYSTEM
● FANUC 31i TB
● Contouring control with FANUC standard user interface
● 15" LCD flat panel with full keyboard
● 256 KB user memory, 2MB program memory
● 64 program numbers
● Work offsets G54-59
● 64 tool offset pairs + 64 additional
● USB interface for loading/saving CNC programs
● Ethernet interface
● GE FANUC "turning" cycles for threading, deep drilling, machining, grooving
● Contour train programming, cutting radius comp, chamfering and corner rounding
● Rigid tapping on all live turret tools
● C-axis polar coordinates and cylinder interpolation
● Parallel programming in the background
● Simple menu-driven conversational programming screens guide the operator through a series of
frequently used machining operations.
● Inch-Metric switching
● Electronic handwheel integrated in control panel
● Primary language English with trilingual German/French dialogue
● Manual Guide i Conversational programming
● Tool monitoring via user defined limits to monitor tool overload or crashing
● Helical interpolation
● Custom macro variables
● Automatic machine shutdown and energy saving mode - user definable
STANDARD EQUIPMENT
● Signal lamp on top of machine
● Foot switch for Spindle 1 and Spindle 2
● Chip conveyor with hinged belt, right exit, with integrated coolant tank and pump
● High pressure coolant system with additional 61 gallon (230L) tank. Maximum 362 psi (25 bar), 218 psi (15 bar) average
● Dual 100 μm fine filter cartridges with bypass valve and electronic monitoring
● Coolant gun for rinsing
● Tool probe for measuring tools in the X/Y/Z axis
● Preparation and ductwork for mist collector unit
● UNIMAG bar loader interface
● Part pickup device, maximum length is 12.2 in (310 mm)
● Parts conveyor, 2m x 100mm w/ side guides, discharge right, cycle controlled
● Standard documentation in English
● Simplified 3D model of the machine
