New NEXTURN SA20B | Swiss Type Automatic Screw Machines
Have one to sell?
ConditionNew
New

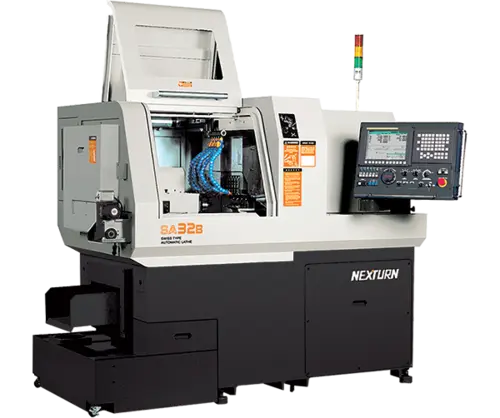

Nexturn SA(B) Swiss CNC lathe series represent a cost efficient and productive 7-axis machine for complex precision parts. Three models feature synchronous guide bushings, 7 machining axes and as many as 22 tools to handle maximum bar diameters of 12mm, 20mm and 32mm. Maximum turning lengths are 6.3″ on the 12mm machine and 8″ on the 20mm and 32mm models.
Built-in motor on main spindles range from 3 – 10 HP and maximum RPM capacity up to 10,000 RPMs, while sub-spindles offer 1.5 – 3 HP and up to at 10,000 RPMs. Both spindles have full C-axis with .001° positioning. Powerful live tools, operating at 1.3 HP and 6,000 RPMs allow for complex milling operations.
Excellent rigidity results from the use of FEA technology in the one-piece bed casting design. The machine design maximizes ease of use with ergonomically arranged controls and fully opening covers and doors.
STANDARD MACHINE ACCESSORIES
FANUC 0iT-F PLUS CONTROL, DUAL PATH CONTROL
SIMULTANEOUS MAIN & SUB SPINDLE CONTROL
AC SERVO AXES CONTROL
FULL STROKE SYNCHRONOUS TYPE ROTARY-GUIDE BUSHING UNIT
MPG PROGRAM CHECK
CROSS DRILL / MILL UNIT ( 4 SPINDLE ), SPEED 200 – 6,000 RPM
MAIN SPINDLE, RIGID SPINDLE POSITIONING (0.001 DEGREE)
SUB SPINDLE, RIGID SPINDLE POSITIONING (0.001 DEGREE)
MAIN SPINDLE, PNEUMATIC BRAKE SYSTEM
PART EJECTION DETECTION
AIR BLOW BY M-CODE
PART CONVEYOR WITH STOCKER BASE
MAIN SPINDLE COLLET CHUCK ADAPTOR FOR TF25
SUB SPINDLE COLLET CHUCK ADAPTOR FOR TF25
GUIDE BUSHING ADAPTOR FOR TD25NS
THREE FRONT-END FACE DRILLING STATION – SPEED 200 – 8,000 RPM (TWO LIVE / ONE FIXED)
FOUR BACK-END FACE DRILLING STATION (FOUR FIXED TOOL)
SIX POSITION OD TURNING HOLDER (12mmx12mm)
Y AXIS I.D. TOOL UNIT (5 STATION)
LEVELING BOLTS AND PADS
SET OF SERVICE TOOLS
SERVICE TOOL BOX
WORK LIGHT
TOOL SETTING GAGE
3 COLOR STATUS LIGHT TOWER
CENTRALIZED LUBE SYSTEM
CUTTING OIL TANK
CUTTING OIL FLOW DETECTOR
MACHINE ACCURACY TEST CHART
PARAMETER LIST
ONE COMPLETE SET OF FANUC MANUALS (ENGLISH)
ONE SET OF NEXTURN MANUAL (ENGLISH)
