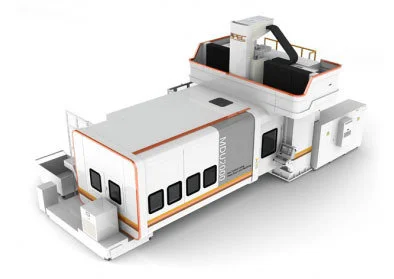

New APEC MDU-2500 | Gantry Machining Centers (incld. Bridge & Double Column)

Description

1,000Nm spindle torque, 5 axis machining
XYZ box way
one compact-sized milling head to finish inner and outer surfaces of the work piece

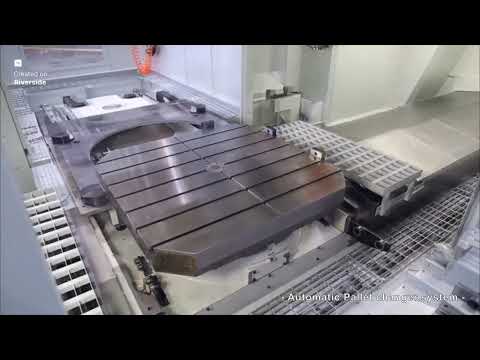

auto pallet exchange to boost up production duty rate

Specifications MDU-2500
Travel
X-axis 2,500mm (excluding APC travel)
Y-axis 2,500
Z-axis 800mm
Distance between two columns 2,000/2,500mm
Distance between spindle nose to table surface B-axis0°= 200~1,000mm B-axis90°= 500~1,300mm
Spindle　
Spindle taper CAT50
Spindle speed 3000rpm
Spindle torque (S1/S6) 840/1,000Nm
Swivel head (B-axis)
Swivel torque (S1/S6) 3,200/3,700Nm
Swivel angle ±110°
Rotary working table (C-axis)
Rotating torque 8,500/29,000Nm
Rotating angle 360° (continuous)
Max. table size 1,250 × 1,250mm
