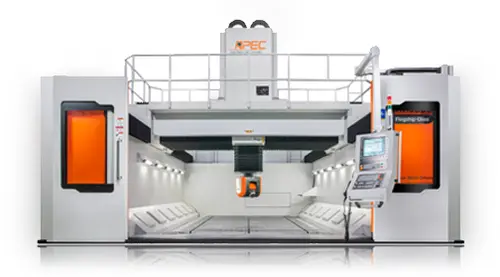

New APEC GM30/3000 | Gantry Machining Centers (incld. Bridge & Double Column)

Description

XYZ-axis with linear motor drive
XYZ rapid traverse 60m/min
Max. acceleration 5m/sec2
Box-in-Box structure design for the smallest thermal deformation and least strain
Two-axis head with direct drive motor
Customized design for special needs


Specifications GM30/3000
X-axis 5000 mm
Y-axis 3000 mm
Z-axis 1000 mm
Rapid traverse XYZ=50 m/min
Acceleration XYZ=5 m/sec2
Spindle taper HSK 63A
Spindle speed 24000 rpm
Spindle power (S1/S6) 37/46 kW
2-Axis Head
Max. swivel/rotation speed B=30 C=30 rpm
Max. swivel/rotation torque (S1-100%) B=760 C=800 Nm
Clamping torque B=2100 C=3000 Nm
Swivel/rotation angle B=±105° C=±200° degree
