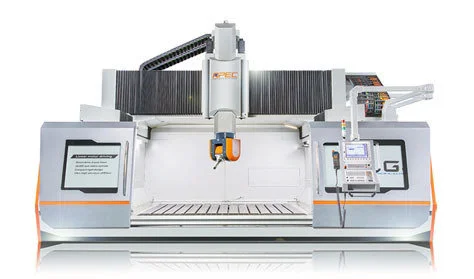

New APEC G30 MAGLEV | Gantry Machining Centers (incld. Bridge & Double Column)

Description

G Maglev

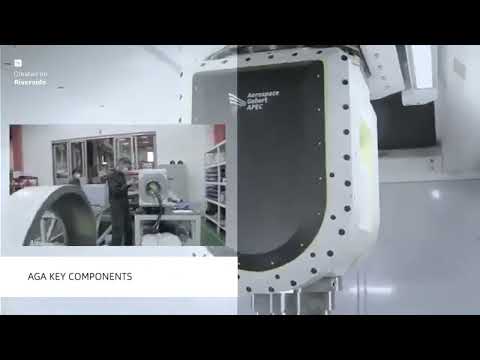

Two-axis head with direct drive motor
Spindle speed 24,000 rpm
U-frame structure
Linear motor in XY axis , rapid traverse 60m/min
Dual ball screw in Z axis

Specifications G30 Maglev
X-axis  2000/3000/4000/5000/6000+ mm
Y-axis 3000 mm
Z-axis 1000 mm
Rapid traverse X=60 Y=60 Z=40
X/Y/Z-axis acceleration 5
Spindle taper HSK 63A
Spindle speed 24000 rpm
Spindle power (S1/S6) 37/46 kW
Max. swivel/rotation speed B=30 C=30 rpm
Max. swivel/rotation torque (S1-100%) B=760 C=800 Nm
Clamping torque B=2100 C=3000 Nm
Swivel/rotation angle B=±105° C=±200° degree
