New DYNAPATH TF-410 | CNC Lathes
Have one to sell?
ConditionNew
New

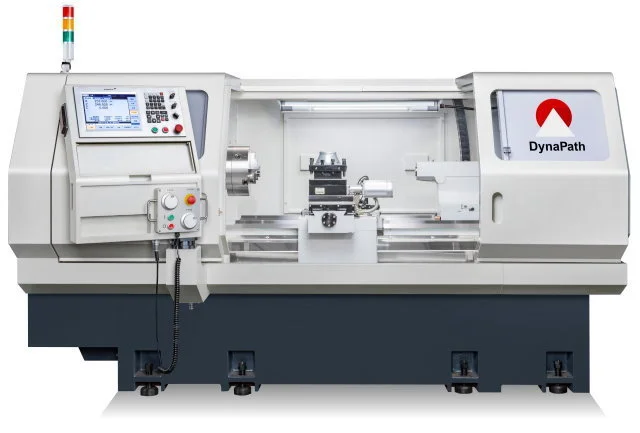

TF-Series Flat Bed Lathes
2+1 Axis Box Way Flat Bed Lathe for Job Shops, Tool Rooms, and Prototyping
The TF series flat bed type lathe machines are designed for versatility. The X and Z axes utilize precision ground box ways with precision ball screws. The spindle motor is housed in a rigid casing fixed to the frame for enhanced rigidity. A tailstock with quill allows set up for long cylindrical parts. An optional X-Axis secondary spindle offers mill-turn functionality. The machine is suitable for turning, grooving, drilling, facing, threading, tapping, keyway milling, face milling, and cylindrical milling of precision parts.
CONTROL SPECS:
10.4" Touchcreen LCD Display
2 GB Program Storage
2 USB, 1 LAN
Yaskawa M-II Link
Handheld MPG Electronic Handwheel
ISO G-Code Motion Interpreter Core
Shop Floor Conversational Programming
DXF Drawing Import via Touch
USB File Transfer
FTP Networked File Management
Remote Diagnosis & Support
Remote Monitoring and Reporting
Program Retrace
MPG Run
3D Solid Model Simulation
CONTROL FEATURES:
Manual + Semi-Auto Operation enables running lines, arcs, profile, and thread cycles by teaching or inputting parameters, without the need to write a program.
Conversational Programming + DXF Import
Native ISO/Standard G-Code Support enables posting standard G-Code from CAD/CAM applications and running it on the control.
MPG Run feature allows easing into a part program by controlling the feed manually by turning the electronic MPG handwheel.
Program Retrace feature allows starting the part program at any specified block to continue where it was previous interrupted.
Standard features:
Dual Electronic Handwheel Station
Automatic 4 Way Tool Post
Air Driven Hydraulic Spindle Disc Brake
Auto Lubrication System
Manual 8" Chuck (TF-410), 10" Chuck (TF-480)
Manual Tailstock with Quill
Semi-Auto/Teach-in/Learning Mode
Work Light
Tri-Color Light Post
Spindle C-Axis Mode
Interlocked Chuck and Main Safety Guards
Options:
Spindle C-Axis Mode with Disc Brake Clamp
Milling head with Sub-Spindle for fixed C-Axis side Drill, Bore, Tap, and Milling
Hydraulic Chuck
12" Chuck (for TF-480)
