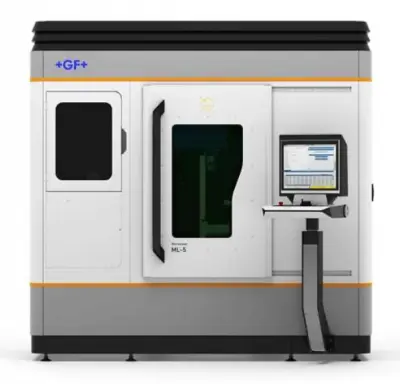

New GF Microlution ML-5 (5-Axis) | Laser Cutters

Description

GF Machining Solutions’ Microlution ML-5 Laser micromachining solution is optimized for high-speed, high accuracy Laser drilling and cutting of small, high-precision features and targets most cutting-edge, micro-scale applications. With the ML-5 you can respond to the miniaturization trend and deliver precision parts with higher performance, productivity, and flexibility.

Micromachining with femtosecond Laser
Get the flexibility to machine multiple shapes in a single setup. The ML-5 is the solution for three- or five-axis, HAZ-free (heat-affected zone) micro hole drilling and fine cutting ideal for various materials: stainless steel, steel, glass, precisions metals, brass, copper, ceramic, silicon chips, shape memory alloy.

Achieve high performance
Get high precision results with no burr, high surface quality, and low part-to-part variability through ultrafast pulsed Laser (femtosecond), best-in-class thermal stability (granite base construction), linear axis accuracy (linear motors), high dynamic performance (high-resolution glass scale encoder), and high-performance optics (high-precision beam delivery system). Increasing the machine’s performance and flexibility are Automation, System 3R Tooling, workpiece touch probe, integrated power meter, high speed optical camera, laser sensor, exhaust, and lenses for varying focal length.

Reduce your cycle times
Efficiently remove material and machine smaller parts faster with higher quality using ultrafast laser. The Microlution ML-5 laser platform machines without HAZ to eliminate costly post-processing and shorten your cycle times.

Benefit from value-added functions
You can take pre-, in-, and post-process measurements, make adjustments of the machining process, and receive real-time feedback, because the Microlution ML-5 is equipped with optical, tactile, and Laser-based, high-precision measurement systems.

Unlimited feature possibilities
Achieve new designs for holes and shapes due to the flexibility you get from the multi-axis scan head and motion platform, which is in synchronization and combination with the custom ML-5 software allow for limitless capabilities.

Get higher machine throughput
Transform your Microlution ML-5 from low-volume research and development (R&D) and prototype development into serial production systems and—with the addition of Automation enhancements— individual turnkey solutions, thanks to the machine’s robustness and flexibility.

Stay connected
These machines are rConnect ready, so you can stay connected with your production environment anywhere at any time. Thanks to innovative digital services, rConnect allows you to monitor your productivity and to improve your machine availability.
