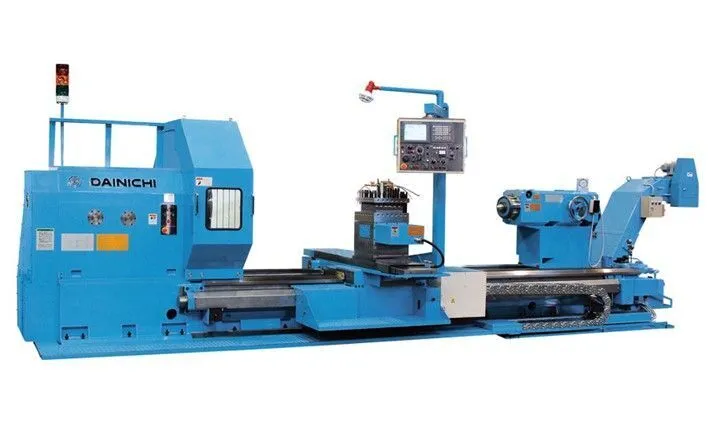

Dainichi has been concentrating on building flat type bed lathes for over 80 years and has established a firm position among heavy-duty machining industries worldwide. Over 1,000 units are running in North America since the 1960’s.
The combination of old-world craftsmanship and new world technology has resulted in the development of the industry's most rigid and powerful lathes. Featuring high-torque motors and one-piece integrated bed, as well as expanded work areas and large spindle bores, Dainichi lathes are designed to turn larger parts than any other machines in their class.
Dainichi, founded in 1931, has grown to become one of the leading manufacturers of lathes - small-, medium- and super large-sized.
Our traditional rock-solid casting, and proven manufacturing methods, are combined with cutting-edge CNC technology to ensure that Dainichi lathes unremittingly excel across diverse industries and turning applications. The beefy, large diameter built-in tailstock spindle solidly holds large parts during heavy cutting. The centralized pendant-mounted control panel is user-friendly, well laid-out, easily learned, and efficiently operated.
Standard Specifications
Main specification
Swing over bed Ø59.05”
Swing over carriage Ø43.3”
Distance between centers 236.2”
Max. supporting capacity between centers 22,000lbs
Spindle
Spindle nose A2-15
Taper of main spindle 1/10 Meter Taper No.120 (N/A)
Diameter though spindle Ø4.09”
Spindle speed 4 Groups 1 – 500 rpm
Main drive motor (30 min/cont.) 60/50HP
Carriage
Size of turret H-4
Size of tool 2”x2”
Max. cutting force 4,400lbs
X axis stroke 29.52”
Z axis stroke Same as distance
Tailstock
Diameter of tailstock spindle sleeve Ø11.02”
Diameter of tailstock spindle Ø5.51”
Size of center 1/10 taper No.80. 75°
Rapid feed of tailstock 70.86”
Rapid feed motor of tailstock 1HP 4P4P
Power Source 68kVA
Standard Accessories
CNC control equipment
4-jaw independent chuck Ø39.97”
Work light
Coolant system
Hydraulic unit
Tool kit
Chuck cover
Foundation bolts, nuts and liners
Built-in rotating tailstock spindle
Thrust load meter for tailstock spindle
Rapid feed device for tailstock
Center sleeve for main spindle
Center for main and sub spindle 75° (1 each)
High pressure pump for center releasing
