New DLyte 100PRO Chilled | Finishing
Have one to sell?
ConditionNew
New

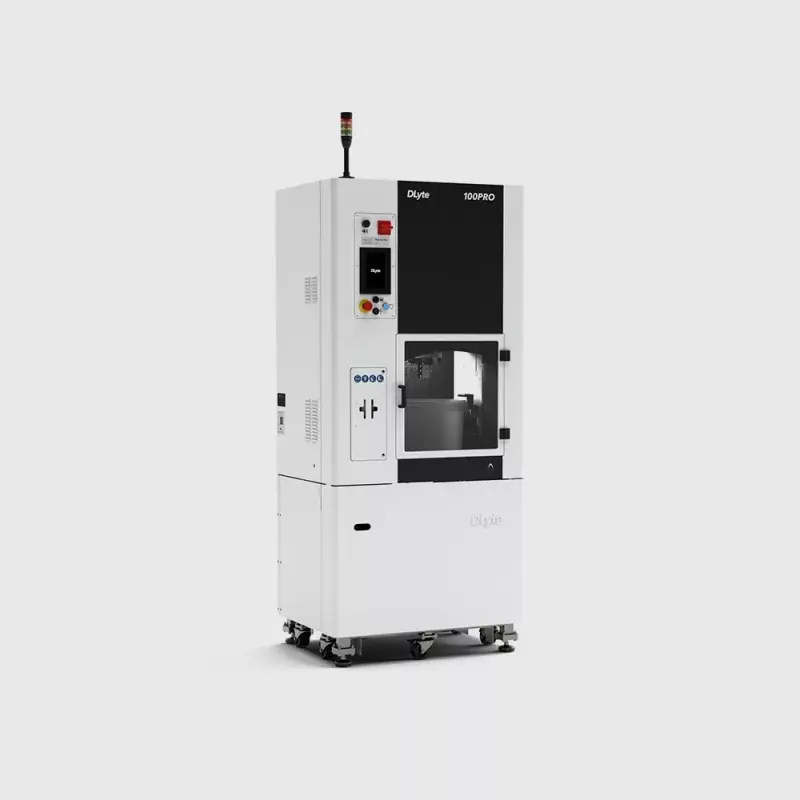

The DLyte100PRO is the largest compact machine for industrial
applications. It combines a planetary movement and a vertical
backand- forth motion inside the drum containing the electrolyte
media. It is suitable to treat materials included in the steel, cobalt-
chrome, titanium, copper-based, nickel-based and aluminium
groups. Its advanced PLC-based electronics allows to apply
asymmetric pulses with low and high frequency, and parameter
concatenation.
FINISHING PROCESSES
+ Precision finishing
+ Smoothing
+ Mirror finishing
+ Deburring
+ Rounding
+ Corrosion resistance
+ AM post-processing
Workbowl and holder are not included. Light tower, anti-vibratory
support, conductivity and temperature calibration system are
included.
* DLyte 100PRO Cooled includes anti vibratory support with
refrigeration system.
Capacity (per cycle) 180 Ø x 80 mm (maximum volume centered to the axis)
Machine dimensions 950 x 1,320 x 889 mm
Support dimensions 950 x 786 x 710 mm
Machine weight 241 kg
Anti-vibratory support weight 93 kg
Anti-vibratory support with refrigeration system weight 144 kg
Power (single phase with industrial plug) 5 kW (single phase with industrial plug)
Voltage 230 V
Air pressure 4-5 bar (air connector: 8mm or 1/4’ BSP’)
Consumption of 40 l/min. The air quality must be 5:4:4*
according to ISO 8573 . (*) Air quality required for a
maintenance every 6 months (change of filters).
Storage capacity (Anti-vibratory support) 231 l
Distilled water tank capacity 6.5 l (drain valve included)
External antisabotage valve Yes
Noise level <70 dB(A)
HMI size Touchscreen LCD TFT 7”
Auxiliar 24 V connector inside cabin for holder accessories Yes
Tower light Yes
Frequency 50-60 Hz
Index of protection IP20 (polishing module)
Main axial turning Yes
Vertical (up/down) Yes
Holder vibration Yes
Media refrigeration Yes
