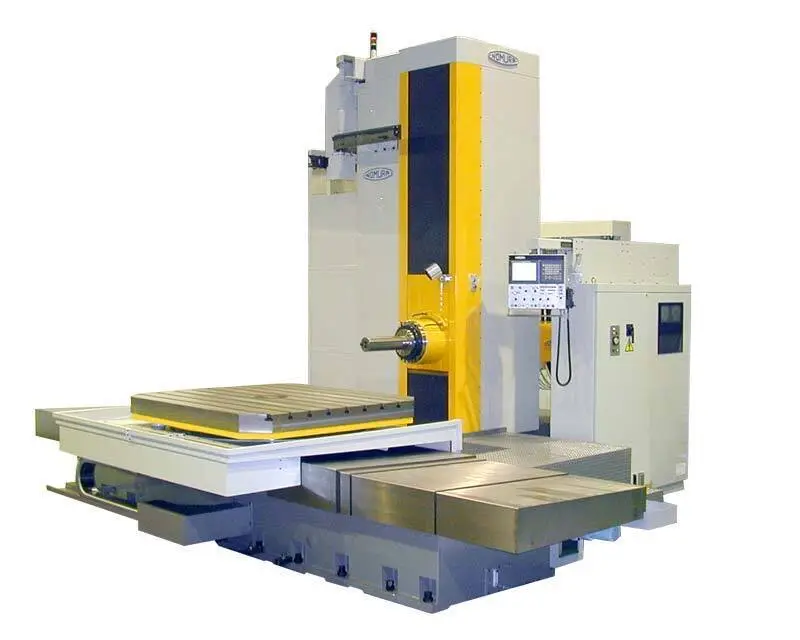

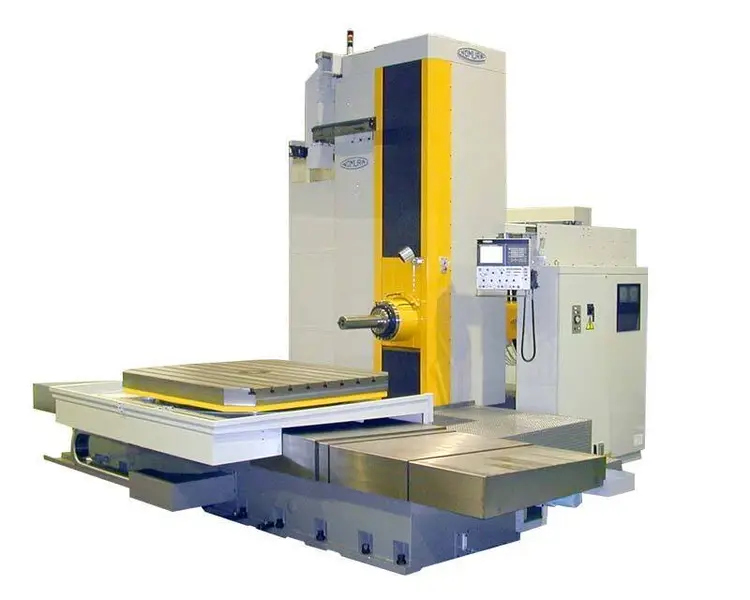

New NOMURA HBA135P-R5 | Horizontal Table Type Boring Mills
ConditionNew
New
• 5.3" spindle diameter
• Oversized large diameter ball screws and feed motors
• Nitrided hardened, ground and hand-lapped spindle (HRC 67+)
• Extra-large spindle bearings with oil-mist cooling device
• Full CNC controlled B axis rotary table with double warm
• Three ranges of geared-headstock with 60HP spindle motor (2,930 Ft. Lbs)
• The bed, the saddle, the column and the table are of high grade FC 300 iron
• All the slideways are hardened and ground
• The mating surfaces are coated with a fluorine-resin and forced lubricated
• 5.3" spindle diameter
• Oversized large diameter ball screws and feed motors
• Nitrided hardened, ground and hand-lapped spindle (HRC 67+)
• Extra-large spindle bearings with oil-mist cooling device
• Full CNC controlled B axis rotary table with double warm
• Three ranges of geared-headstock with 60HP spindle motor (2,930 Ft. Lbs)
• The bed, the saddle, the column and the table are of high grade FC 300 iron
• All the slideways are hardened and ground
• The mating surfaces are coated with a fluorine-resin and forced lubricated
Imperial
| Spindle Size | 5.31" |
| X-Horiz Tvl of Table | 118.1" |
| Y-Vert Tvl of Head | 90.5" |
| Power | 60 hp |
| RPM | 3,000 RPM |
| Table-W | 70.8" |
| Table-L | 70.7" |
| Spindle Tvl. | 27.5" |
