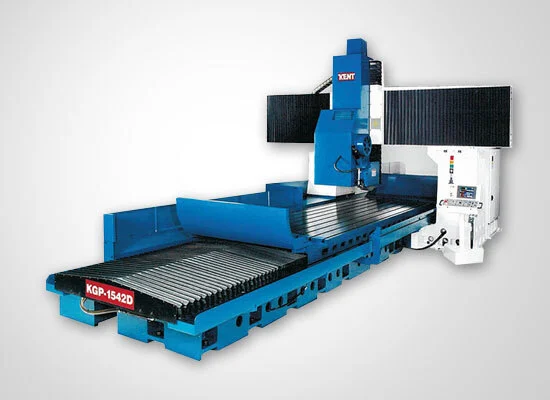

KENT KGP-1532 KGP DOUBLE COLUMN SURFACE GRINDER

Description

FEATURES:
• Box structure castings for extremely rigidity with no weight overhang. Turcite-B coated slide ways.
• Double cylinders and unique design of hydraulic system for table movement. Harden & ground guideways of cross-rail and elevation ways.
• AC servo motors with precision ball-screws effect rapid elevation, automatic down-feed and up & down jogging for both horizontal and vertical spindles(optional).
• Double row roller bearings and angular contact ball bearings used for horizontal spindle, greased for life time.
• At the heart of the control system is a Mitsubishi PLC which provides years of reliable and trouble-free operation.
• Modern 10-inch color LCD touch screen panel, simply touch the screen to set the grinding variables.
• Manual Pulse Generator (MPG) for both down feed and cross feed, including the infeed of diamond dresser.
• The crossfeed travel is set by the push-button on the console; different crossfeed increments can be set for rough and finish grinding separately.
• Integrated in automatic grinding cycle, dressing diamond feeding is driven by AC servomotor with ball-screw.
• The control system will hold the last setting in memory. Simply press the cycle start button to execute the previous grinding procedure.
