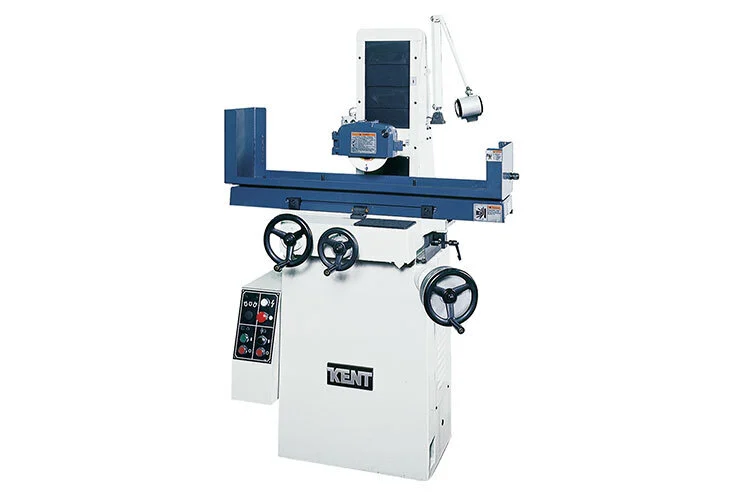

KENT KGS-616S
ConditionNew
New
FEATURES & CAPABILITIES:
• Longitudinal on ball bearing table ways
• Downfeed on hardened and ground slideway
• Crossfeed on Turcite-B coated and scrapped slideway
• Downfeed Microfeed Mechanism
• Crossfeed Microfeed Mechanism
• Spindle motor frequency inverter *Optional
• Overhead manual wheel dresser *Optional
• Variable spindle speed *Optional
• Surface grinding *Manual
• Plunge grinding *Manual
• Single slot grinding (between shoulders) *Manual
• Profile wheel dressing *Manual (Optional)
Main Specifications
Capacity
Overall table working area: 6"x16"
Longitudinal table travel: 16.9"
Crossfeed table travel: 7.9"
Distance spindle center to table: 17.3"
Grinding Wheel
Wheel dimension (Dia. x W x Bore): 8"x3/4"x1-1/4"
Spindle speed: 3480 RPM
Vertical Movement
Vertical on MPG / Handwheel 1 gra: 0.00005"
Vertical on MPG / Handwheel 1 rev: 0.1"
Motor
Spindle motor: 2 HP
Dimension & Weight
Machine height: 68"
Floor space: 64"x48"
Net weight: 1380 lbs.
Gross weight: 1650 lbs.
Standard Equipment
Three Axis Manual
Fine Pole Electromagnetic Chuck
Coolant System with Magnetic Seperator
Downfeed Micro Mechanism
Two Axis Linear Sale & DRO (Kent Brand)
Wheel Balancing Base
Grinding Wheel
Table Dresser
Wheel Balancing Arbor
Wheel Flange
Tools & Tool Box
