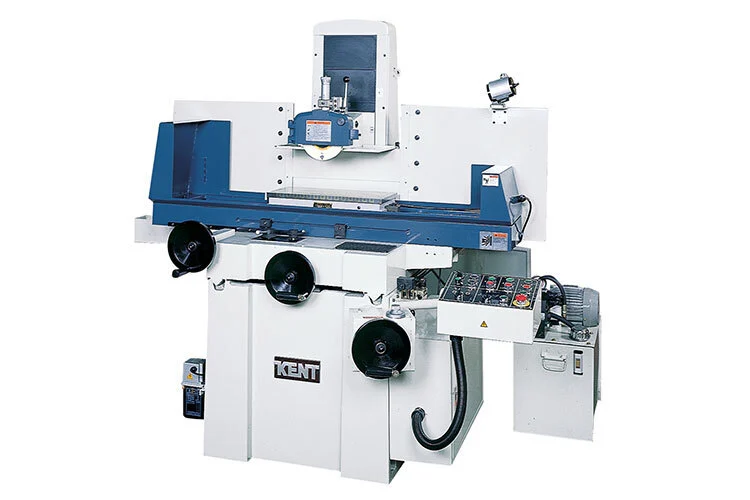

KENT KGS-1020AHD
ConditionNew
New
FEATURES & CAPABILITIES:
• Longitudinal on V-flat scraped guideways
• Saddle traveling crossfeed
• Motorized rapid elevation
• Spindle motor frequency inverter *Optional
• Hydraulic oil chiller *Optional
• Full enclosure *Optional
• Overhead hydraulic wheel dresser
• Variable spindle speed *Optional
• Surface grinding
• Plunge grinding
Capacity
Overall table working area - INCH 10 x 20
Longitudinal table travel - INCH 23.25
Crossfeed table travel - INCH 10.8
Distance spindle center to table - 19.25
Grinding Wheel
Wheel dimension (Dia. x W x Bore) - INCH 8 x 1 x 11/4
Spindle speed - RPM 3480
Vertical Movement
Vertical on MPG / Handwheel 1 gra - INCH 0.0005
Vertical on MPG / Handwheel 1 rev - INCH 0.1
Auto downfeed increment - INCH - 0.0001-0.001
Motor
Spindle motor - HP 3
Dimension & Weight
Machine height - INCH 70
Floor space - INCH 94 x 71
Net weight - LB 3150
Gross weight - LB 3590
Standard Equipment
Front Table Splash Guard
Three Axis Automatic
Electro Magnetic Chuck
Coolant System with Magnetic Seperator
Two Axis Linear Scale and DRO (Kent Brand)
Grinding wheel flange
Flange removal tool
Balance table
Balance rod
Grinding wheel
Tool set
Machine to adjust sizing block
Complete document
Acceptance report according to DIN 8632
