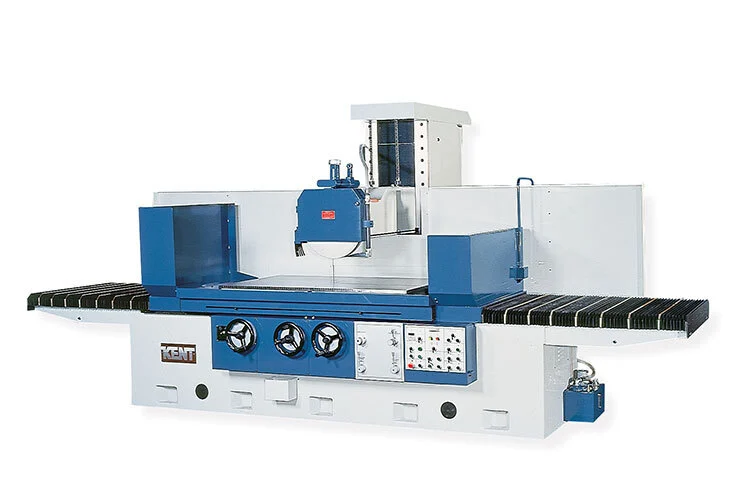

KENT KGS-920AHD KGS SURFACE GRINDER / 3 AXES / COLUMN TRAVELING
ConditionNew
New
FEATURES & CAPABILITIES:
• Longitudinal on V-flat scraped guideways
• Column traveling crossfeed
• Motorized rapid elevation
• Spindle motor frequency inverter *Optional
• Hydraulic oil chiller for stable performance
• Full enclosure *Optional
• Overhead hydraulic wheel dresser
• Variable spindle speed *Optional
• Surface grinding
• Plunge grinding
Capacity
Overall table working area - INCH 36 x 80
Longitudinal table travel - INCH 88.5
Crossfeed table travel - INCH 37.75
Distance spindle center to table - INCH 34.6
Grinding Wheel
Wheel dimension (Dia. x W x Bore) - INCH 20 x 2 x 5
Spindle speed - RPM 1150
Vertical Movement
Vertical on MPG / Handwheel 1 gra - INCH 0.0001
Vertical on MPG / Handwheel 1 rev - INCH 0.02
Auto downfeed increment - INCH 0.0002-0.0016
Motor
Spindle motor - HP 15
Dimension & Weight
Machine height - INCH 112
Floor space - 236 x 145
Net weight - LB 37450
Gross weight - LB 39200
Standard Equipment
- Grinding wheel flange
- Flange removal tool
- Balance table
- Balance rod
- Grinding wheel
- Tool set
- Machine to adjust sizing block
- Complete document
- Acceptance report according to DIN 8632
