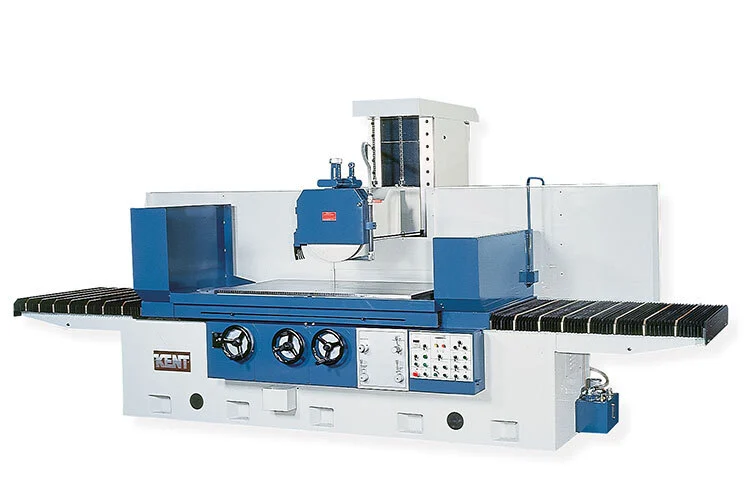

KENT KGS-820AHD KGS SURFACE GRINDER / 3 AXES / COLUMN TRAVELING
ConditionNew
New
FEATURES & CAPABILITIES:
• Longitudinal on V-flat scraped guideways
• Column traveling crossfeed
• Motorized rapid elevation
• Spindle motor frequency inverter *Optional
• Hydraulic oil chiller for stable performance
• Full enclosure *Optional
• Overhead hydraulic wheel dresser
• Variable spindle speed *Optional
• Surface grinding
• Plunge grinding
Capacity
Overall table working area - INCH 32 x 80
Longitudinal table travel - INCH 88.5
Crossfeed table travel - INCH 34.8
Distance spindle center to table - INCH 34.6
Grinding Wheel
Wheel dimension (Dia. x W x Bore) - INCH 2 x 2 x 5
Spindle speed - RPM 1150
Vertical Movement
Vertical on MPG / Handwheel 1 gra - INCH 0.0001
Vertical on MPG / Handwheel 1 rev - INCH 0.02
Auto downfeed increment - INCH 0.0002-0.0016
Rapid elevating -
Motor
Spindle motor - HP 15
Dimension & Weight
Machine height - INCH 112
Floor space - INCH 236 x 134
Net weight - LB 34100
Gross weight - LB 38500
Standard Equipment
Front Table Splash Guard
Three Axis Automatic
Hydraulic Parallel Dresser
Oil Chiller
Electro Magnetic Chuck
Coolant System With Magnetic Separator
Grinding wheel flange
Flange removal tool
Balance table
Balance rod
Grinding wheel
Tool set
Machine to adjust sizing block
Complete document
