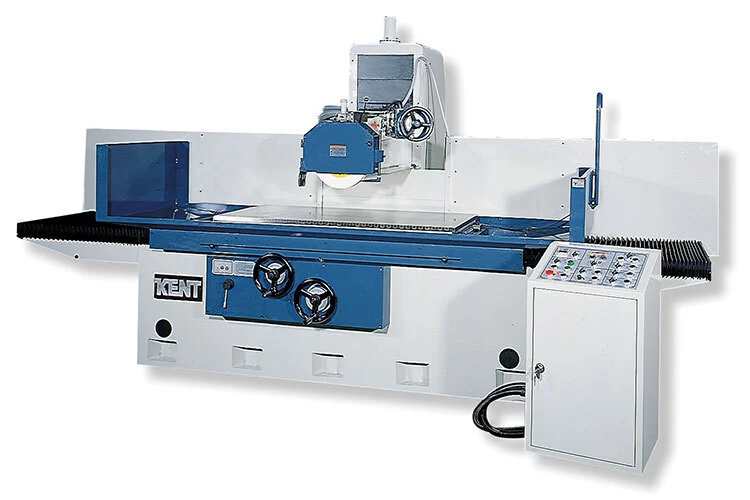

KENT KGS-620AHD KGS SURFACE GRINDER / 3 AXES / COLUMN TRAVELING
ConditionNew
New
FEATURES & CAPABILITIES:
• Longitudinal on V-flat scraped guideways
• Column traveling crossfeed
• Motorized rapid elevation
• Spindle motor frequency inverter *Optional
• Hydraulic oil chiller *Optional
• Full enclosure *Optional
• Overhead hydraulic wheel dresser
• Variable spindle speed *Optional
• Surface grinding
• Plunge grinding
Capacity
Overall table working area - inch 24 x 80
Longitudinal table travel - inch 87.7
Crossfeed table travel - inch 26
Distance spindle center to table - inch 23.6
Grinding Wheel
Wheel dimension (Dia. x W x Bore) - inch 14 or 16 x 2 x 5
Spindle speed - RPM 1740
Vertical Movement
Vertical on MPG / Handwheel 1 gra - inch 0.0001
Vertical on MPG / Handwheel 1 rev - inch 0.02
Auto downfeed increment - inch 0.0002-0.0016
Rapid elevating -
Motor
Spindle Motor - HP 10(15Opt)
Dimension & Weight
Machine height - inch 94
Floor space - inch 244 x 106
Net weight - LB 18700
Gross weight - LB 21350
Standard Equipment
Front Table Splash Guard
Three Axis Automatic
Electro Magnetic Chuck
Coolant System With Magnetic Separator
Grinding wheel flange
Flange removal tool
Balance table
Balance rod
Grinding wheel
Tool set
Machine to adjust sizing block
Complete document
Acceptance report according to DIN 8632
