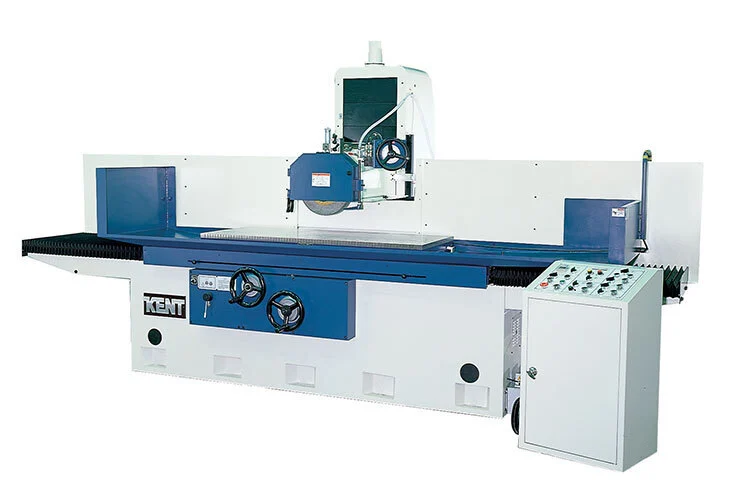

KENT KGS-615AHD
ConditionNew
New
FEATURES & CAPABILITIES:
• Longitudinal on V-flat scraped guideways
• Column traveling crossfeed
• Motorized rapid elevation
• Spindle motor frequency inverter *Optional
• Hydraulic oil chiller *Optional
• Full enclosure *Optional
• Overhead hydraulic wheel dresser
• Variable spindle speed *Optional
• Surface grinding
• Plunge grinding
Main Specifications
Capacity
Overall table working area: 24"x60"
Longitudinal table travel: 63"
Crossfeed table travel: 26"
Distance spindle center to table: 23.6"
Grinding Wheel
Wheel dimension (Dia. x W x Bore): 14" or 16"x2"x5"
Spindle speed: 1740 RPM
Vertical Movement
Vertical on MPG / Handwheel 1 gra: 0.0001"
Vertical on MPG / Handwheel 1 rev: 0.02"
Auto downfeed increment: 0.0002-0.0016"
Motor
Spindle motor: 10HP (15 HP Optional)
Dimension & Weight
Machine height: 94"
Floor space: 228"x96"
Net weight: 13750 lbs.
Gross weight: 15950 lbs.
Standard Equipment
Front Table Splash Guard
Three Axis Automatic
Electro Magnetic Chuck
Coolant System with Magnetic Seperator
Grinding Wheel Flange
Flange Removal Tool
Balance Table
Balance Rod
Grinding Wheel 355x50x127mm
Tool Set
Machine-to-adjust-Sizing-Block
Complete Documentation
