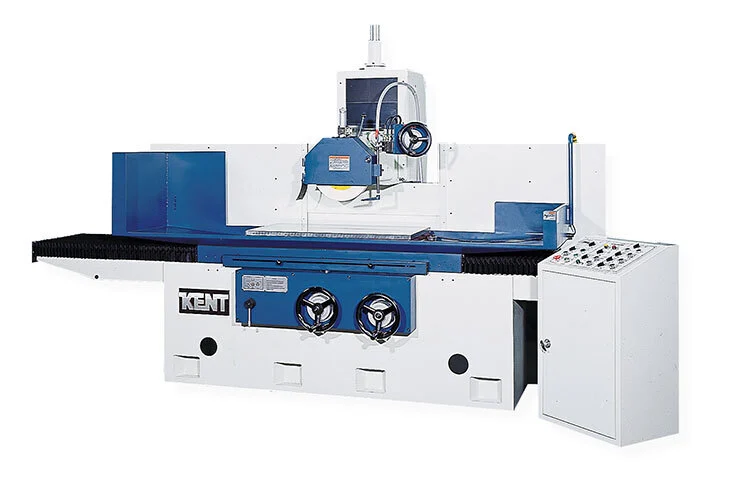

KENT KGS-510AHD
ConditionNew
New
FEATURES & CAPABILITIES:
• Longitudinal on V-flat scraped guideways
• Column traveling crossfeed
• Motorized rapid elevation
• Spindle motor frequency inverter *Optional
• Hydraulic oil chiller *Optional
• Full enclosure *Optional
• Overhead hydraulic wheel dresser
• Variable spindle speed *Optional
• Surface grinding
• Plunge grinding
Capacity
Overall table working area: 20"x40"
Longitudinal table travel: 44.9"
Crossfeed table travel: 21.3"
Distance spindle center to table: 23.3"
Grinding Wheel
Wheel dimension (Dia. x W x Bore): 14"x1.5" or 2"x5"
Spindle speed: 1740 rpm
Vertical Movement:
Vertical on MPG / Handwheel 1 gra: 0.0001"
Vertical on MPG / Handwheel 1 rev: 0.02"
Auto downfeed increment: 0.00020-0.0016"
Motor:
Spindle motor: 7.5 hp
Dimension & Weight
Machine height: 94"
Floor space: 175"x86"
Net weight: 11,000 lbs.
Gross weight: 13,500 lbs.
Standard Equipment
Grinding Wheel Flange
Flange Removal Tool
Balance Table
Balance Rod
Grinding Wheel 355x38x127mm
Tool Set
Machine-to-adjust-Sizing-Block
Complete Documentation
