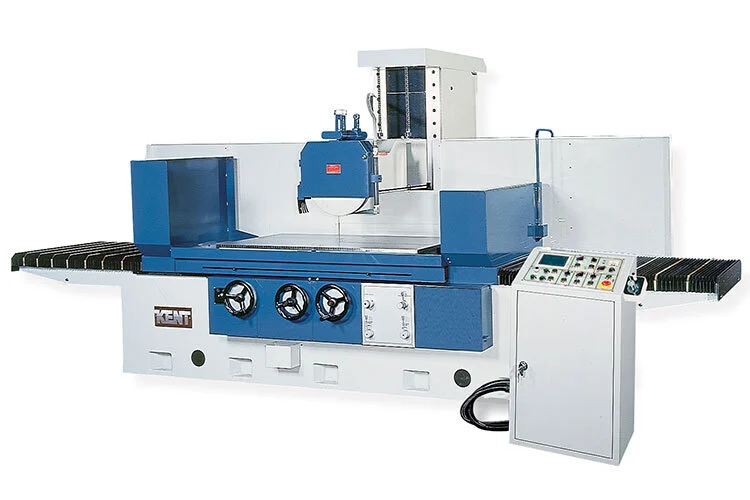

KENT KGS-820WM SERIES KGS SURFACE GRINDER / 3 AXES AUTOMATIC
ConditionNew
New
KGS-820WM1 (Downfeed Programmable)
KGS-820WM2 (Downfeed and Crossfeed Programmable)
KGS-820WMA1 (Downfeed Programmable + Auto Dresser)
KGS-820WMA2 (Downfeed and Crossfeed Programmable + Auto Dresser)
Capacity
Overall table working area - INCH 32 x 80
Longitudinal table travel - INCH 88.5
Crossfeed table travel - INCH 34.5
Distance spindle center to table - INCH 34.5
Grinding Wheel
Wheel dimension (Dia. x W x Bore) - INCH 20 x 2 x 5
Spindle speed - RPM 1150
Vertical Movement
Vertical on MPG / Handwheel 1 gra - INCH 0.00005
Vertical on MPG / Handwheel 1 rev - INCH 0.005
Auto downfeed increment - INCH 0.0002-0.00005
Rapid elevating -
Motor
Spindle motor - HP 15
Dimension & Weight
Machine height - INCH 112
Floor space - INCH 237 x 133
Net weight - LB 34100
Gross weight - LB 38500
FEATURES & CAPABILITIES:
• Longitudinal on V-flat scraped guideways
• Column traveling crossfeed
• Motorized rapid elevation
• Spindle motor frequency inverter *Optional
• Hydraulic oil chiller for stable performance
• Full enclosure *Optional
• Overhead hydraulic wheel dresser
• Variable spindle speed *Optional
• Surface grinding
• Plunge grinding
