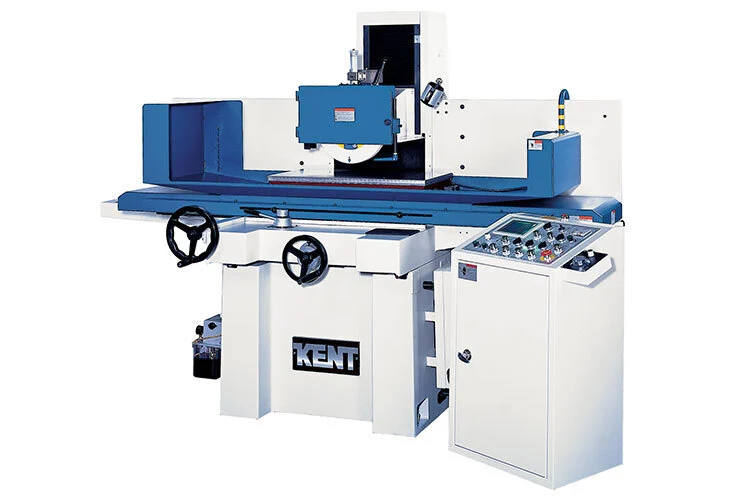

KENT KGS-84WM PROGRAMMABLE PRECISION SURFACE GRINDER
ConditionNew
New
KENT KG Longitudinal on V-flat scraped guideways
Saddle traveling crossfeed
Motorized rapid elevation
Spindle motor frequency inverter *Optional
Hydraulic oil chiller *Optional
Full enclosure *Optional
Overhead hydraulic wheel dresser
Variable spindle speed *Optional
Surface grinding
Plunge grindingS-84WM "Wizard Master" PROGRAMMABLE PRECISION SURFACE GRINDER
Capacity
Overall table working area INCH 16 x 32
Longitudinal table travel INCH 36.6
Crossfeed table travel INCH 17.75
Distance spindle center to table INCH 24
Grinding Wheel
Wheel dimension (Dia. x W x Bore) INCH 14 x 1.5 or 2 x 5
Spindle speed r.p.m 1740
Vertical Movement
Vertical on MPG / Handwheel 1 gra INCH 0.00005
Vertical on MPG / Handwheel 1 rev INCH 0.005
Auto downfeed increment INCH 0.00005-0.01
Motor
Spindle motor HP 7.5
Dimension & Weight
Machine height INCH 74
Floor space INCH 142 x 103
Net weight LB 6160
Gross weight LB 6160
Standard Equipment
- Grinding wheel flange
- Flange removal tool
- Balance table
-Balance rod
- Grinding wheel
- Tool set
- Machine to adjust sizing block
- Complete document
- Acceptance report according to DIN 8632
