New HYD-MECH H-40/40 | Horizontal Band Saws
ConditionNew
New

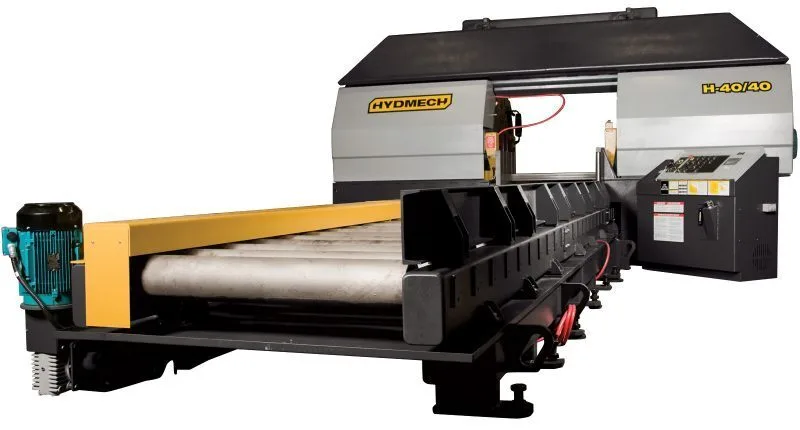

The H-40/40 is a horizontal band saw providing accurate 90° metal cutting for heavy-duty applications.
The H-40/40 has a workload capacity of 50,000 lbs. A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement.
Its PLC control digitally displays blade speed, feed rate, head up limit position, and cut elapsed time, and time remaining.
Featuring a 40″ x 40″ capacity, 20 HP motor, and 3″ blade, the H-40/40 is a reliable choice for all your heavy-duty horizontal metal cutting applications.
The H-40/40 is a horizontal band saw providing accurate 90° metal cutting for heavy-duty applications.
The H-40/40 has a workload capacity of 50,000 lbs. A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement.
Its PLC control digitally displays blade speed, feed rate, head up limit position, and cut elapsed time, and time remaining.
Featuring a 40″ x 40″ capacity, 20 HP motor, and 3″ blade, the H-40/40 is a reliable choice for all your heavy-duty horizontal metal cutting applications.
Imperial
| Rect-Cap (H) | 40" |
| Rect-Cap (W) | 40" |
| Rounds-Cap | 40" |
| Power | 20 hp |
| Type (Auto, Manual, Semi) | Semi |
| Blade Width | 3" |
| Dimensions | 215” x 102” x 145” |
| Weight | 42,000 lbs. |
